Industrial IQF Broccoli Florets Washing and Quick Freezing Solution
May 28, 2026
In the global frozen vegetable export trade, the processing technology of broccoli directly determines the floret damage rate, color retention, and profit margins. Joyshine Machinery designs high-performance, fully automated broccoli washing and freezing lines that seamlessly integrate raw pre-treatment with advanced Individual Quick Freezing (IQF) technology. The entire line features a low-drop, anti-collision design to maximize the yield of premium grade florets.
I. Processing Flow and Core Equipment Configurations (Based on 600 kg/h Standard Line)

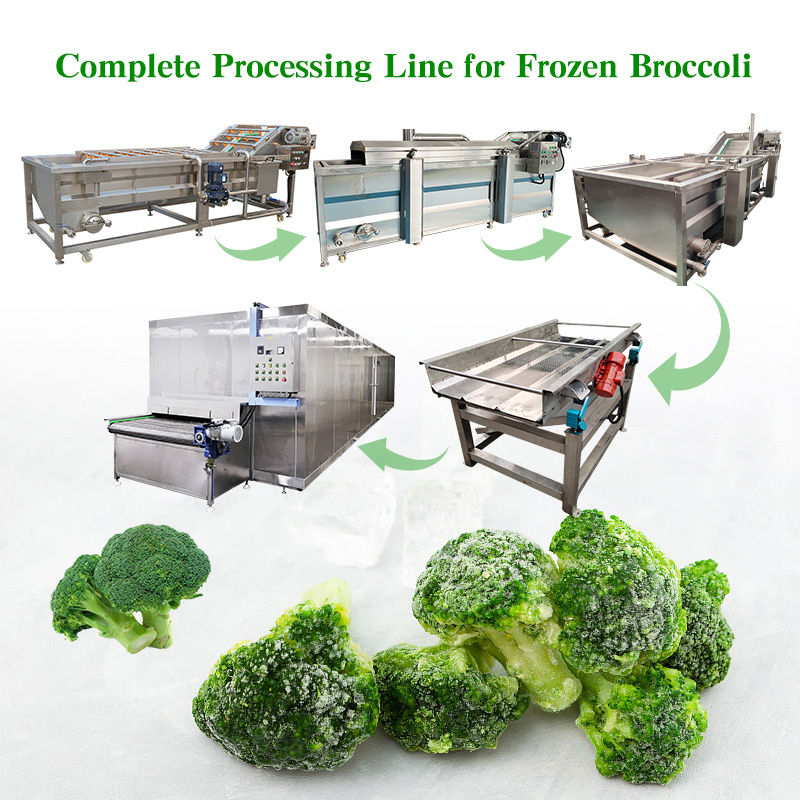

System Route: Manual Floretting -> Automatic Elevating -> Bubble Washing -> Hot Water Blanching -> Chilled Water Cooling -> Vibratory Dewatering -> IQF Freezing
1. Manual Floretting & Trimming Conveyor
Features a dual-channel SUS304 stainless steel design to separate finished florets from waste stalks. Manual cutting ensures uniform sizing (e.g., export standard 2-4cm) and prevents floret shatter caused by mechanical cutting.
2. High-Pressure Bubble Washing Machine
Combines high-pressure air bubbles with top water spraying to simulate gentle manual scrubbing. This fluid motion thoroughly dislodges deep-seated sand, insects, and pesticide residues from dense florets without damaging delicate crowns. Includes a conical sedimentation tank for continuous waste discharge.
3. Continuous Hot Water Blancher
Equipped with microcomputer temperature control accurate to ±1°C (typically operating at 85°C - 95°C). A dual-layer hold-down mesh belt forces the lightweight, floating broccoli florets completely submerged, ensuring uniform enzyme inactivation and locking in the vivid green color.
4. Chilled Water Cooling Machine (Chiller System)
Utilizes 0°C - 4°C circulating ice water to instantly cool the blanched broccoli. This rapid thermal shock stops the residual heat immediately, preventing overcooking or softening, thus preserving the crisp texture required for export markets.
5. High-Frequency Vibratory Dewatering Machine
Uses high-frequency, low-amplitude vibration motors to thoroughly remove residual surface moisture and filter out fine particles before freezing. This prevents the formation of thick ice glazing and avoids clumping inside the freezer.
6. Fluidized IQF Tunnel Freezer
Powerful bottom-up airflow suspends the broccoli florets in a true fluidized state, ensuring they freeze individually without sticking together. Operating at -35°C to -40°C, it brings the core temperature to -18°C within minutes, locking in nutrients and minimizing drip loss upon thawing.
II. Why Choose Joyshine Machinery?
Premium Material Specifications: All structural frames, mesh belts, pumps, and valves are constructed from food-grade SUS304 stainless steel, fully meeting HACCP and FDA sanitary standards.
Customized Electrical Compliance: Core electrical components utilize international brands like Schneider or Siemens. We fully customize voltage and frequency to match local grids (e.g., 220V/380V/440V at 50Hz/60Hz) for Latin America, the Middle East, and beyond.
Turnkey Engineering Delivery: We provide comprehensive engineering documentation, including detailed factory layout plans (Layout Plan), foundation drawings, and precise electrical/steam consumption charts to ensure effortless onsite integration.
III. Technical Q&A
Q: How does the continuous blanching and cooling system optimize operational costs?
A: Our blanching system features advanced thermal insulation alongside ±1°C precision PID temperature control, which saves approximately 20% in steam consumption compared to traditional designs. Furthermore, the low-drop transition between blanching and cooling minimizes heat carryover, significantly reducing the electrical load on your factory's refrigeration or chiller unit.
Q: How does this solution strictly control ice glazing to meet international export standards?
A: Excessive ice glazing leads to non-compliance and high shipping costs. Our solution leverages a high-frequency vibratory shaker to eliminate surface water prior to freezing. Then, the fluidized IQF freezer converts remaining moisture into micro-crystals within minutes rather than an exterior ice layer, keeping the glazing ratio minimized while ensuring 100% individual free-flowing florets.
Need Layout Drawings & Customized Quotation for a 600 kg/h Broccoli Processing Line?
