Cassava Chips Production Line

Description:

Cassava chips production line is a new type of chips production line developed by Joyshine. Cassava chips line is made of high quality 304 stainless steel, PLC electrical control, high technical content, safe and efficient the bearings are imported stainless steel bearings, electrical appliances. The use of imported brand-nane products, the technical level of domestic leading.

Advantage

  • 1. Cassava chips process capacity (finished capacity 50kg/h to 500kg/h)and work flow can be customized.
  • 2. All equipment are made of SUS304, electrical apparatus element are Schneider brand or CHINT brand.
  • 3. Heating method: Electric heating, Gas heating or Diesel heating (equipped with RIELLO or BALTUR burner), etc.
  • 4. The thickness of chips are adjustable.
  • 5. We have special equipment to remove the unqualified fries.
  • 6. With special designed cassava chips fryer, quick heating and energy saving, enabled good performance.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Description

Cassava chips production line is to produce delicious cassava chips from cassava tubers. Cassava chips are also known as tapioca chips, manioc chips and yuca chips in different countries. In light of these variant of names, we can tell the cassava chips are popular. And with various added flavors, tapioca chips are becoming more and more popular, just like potato chips and banana chips. Due to this rising popularity, cassava chips making industry is of great margins. In other words, cassava chips making business is a profitable one. If you want to step into the manioc chips making business, or expand your existing business, please do not hesitate to contact us. For we are professional supplier and manufacturer of cassava chips making machines, we offer turnkey solutions for your yuca chips line as well as quality chips making machine.

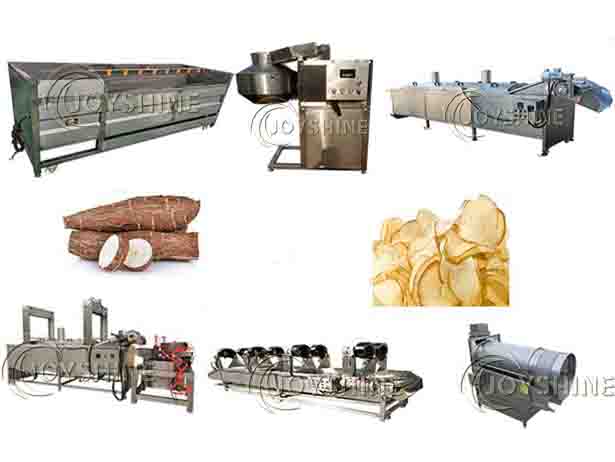

Tapioca Chips Production Process and Machinery

As a kind of root vegetable, cassavas are processed into chips just like producing potato chips from potatoes. To obtain optimum end product, each process is vital in itself.

Sorting and grading

At first, when the cassavas arrive at factory, they are sorted and graded, removing defective ones. This sorting and grading process can be done both mechanically and manually. At times, workers will trim or cut the cassavas into halves if they are too big to process. Our sorting and grading machine can do the job effectively and efficiently.

Washing and peeling

Then the cassavas will be washed and peeled. For small scale cassava chips production, this washing and peeling process can be done by human labor, while machines are used in large scale cassava chips plant. For our washer and peeler, it is integrated into one machine. With roller brushes and spraying water, the washer and peeler can do the job in an effective way with less use of energy.

Cassava cutting machine

The washed and peeled cassavas will be cut into thin slices with regular shapes. Usually the cassava slices are often soaked into water when they are cut. Our cassava cutting machine can cut cassavas into thin slices with uniform shapes and adjustable thickness.

Blanching

Then the following step is to blanch these cassava slices. Blanching is important in that it can remove extra starch, preserve desirable color, and eliminate potential bacteria. Our blancher machine allows you to control the temperature of water and blanching time.

De-watering

Since there is extra water on surfaces of cassava chips after blanching, it is necessary to dry them up before frying. Our dehydration machine uses vibration system, which can drain off water without damage to the cassava chips.

Frying

The next is frying process, in which cassava slices are deep fried in high temperature oil. Our cassava chips fryer machine allows for precise oil temperature control, adjustable belt speed, and fast removal of particles. All these combined can ensure you get quality end products with less use of water and energy.

De-oiling

Since there is extra oil on the surface of fried cassava chips, it is necessary to remove it by de-fatting machine. Through vibrating, our deoiling machine can remove extra oil effectively with minimum damage to the products.

Flavoring

To make them delicious, flavors are added to plain cassava chips. Our flavoring mixer machine can spread the flavors evenly on the products, due to its smart design.

Packaging

The final stage is packing. It is vital for prolonging product shelf life, it can also serve as a strong promotion tool. Our cassava chips packaging machine can pack the cassava chips efficiently with no damage to the products.

Two types you can chose in Joyshine machine

Obviously, there are two types for your choice according to your capacity, budget and other factors.

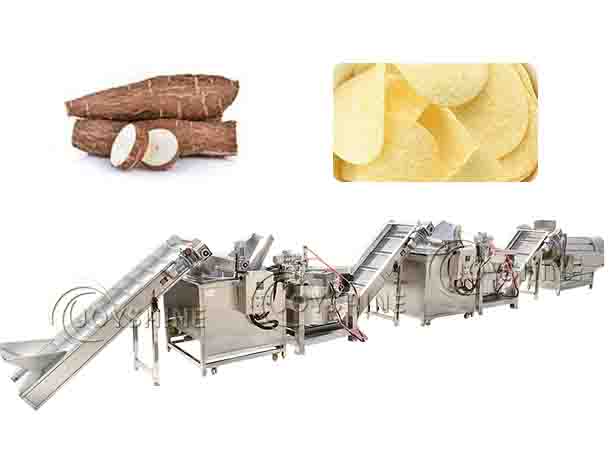

Semi-automatic cassava chips production line

For a beginner and people who have low buget, this type is the best solution for you.  In term of capacity, it is about 50kg/h to 100kg/h. Absolutely, it can meet the need for small scale potato chips, french fries and cassava chips plant.

semi-automatic cassava chips line

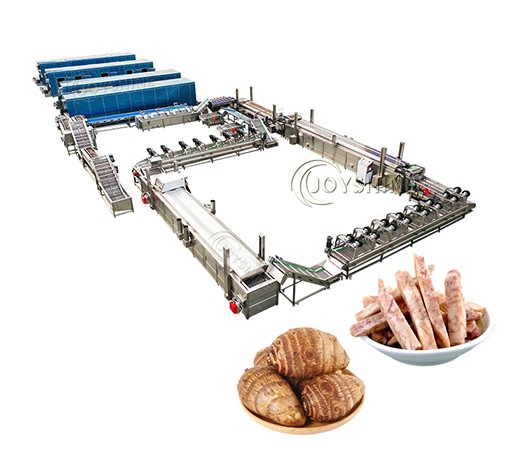

Fully automatic cassava chips line

This plantain chips line has high automaticon compared with semi automatic banana chip line.  As for people who have a lot of experience in food industry, this type is very  suitable for you. At the same time you can have enough budget to support your business. There are much advantages for your reference: reducing labor cost, high capacity at high speed, better quality for banana chips, easy to control temperature and time. If you want to save time and reduce extra work, this is the perfect solution for your choice.

As for the cassava chips making machines prices, since they are all made in our own factory, we can offer your reasonable prices than competitors.

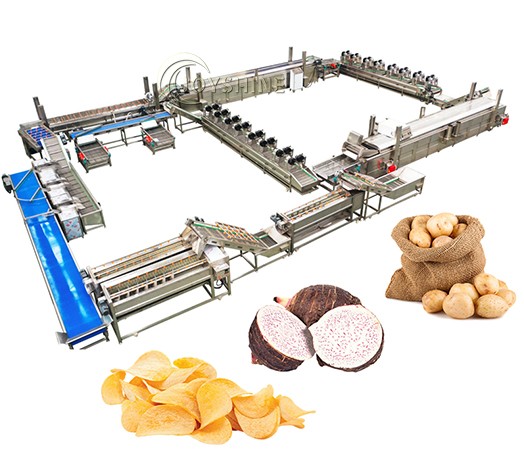

fully automatic cassava chips production line

Benefits of Manioc Chips Plant

Customer design. While you can choose from our various machines, we also provide tailored turnkey solutions and customer designed machines to meet your needs and requirements.

Quality machines. The cassava chips making machines in our factory are all made of high quality food grade stainless steel. This makes the machines durable and sanitary.

Ease maintenance. Due to advanced technology and smart design, our cassava chips making machines are easy to clean and maintain, reducing down time.

Competitive prices. The machines for tapioca chips making line are all designed and manufactured in our own factory, which save you from third party fees.



Advantage

  • 1. Cassava chips process capacity (finished capacity 50kg/h to 500kg/h) and work flow can be customized.
  • 2. All equipment are made of SUS304 and electrical apparatus element are Schneider brand or CHINT brand.
  • 3. Heating methods: Electric heating, Gas heating or Diesel heating (equipped with RIELLO or BALTUR burner), etc.
  • 4. The thickness of cassava chips  are adjustable from 1mm to 5mm.
  • 5. For cassava chips line, we have special equipment to season different flavors.
  • 6. With special designed fryer, quick heating and energy saving, enabled good performance.

Parameters

No.

Name

Quantity

1

Elevating Conveyor

1 set

2

Cassava Washing and Peeling Machine

1 set

3

Cassava Picking Line

1 set

4

Cassava Cutting/Slicing Machine

1 set

5

Cassava Chips pre washing machine

1 set

6

Cassava Chips roller picking machine

1 set

7

Cassava chips Bubble Washing Machine

1 set

8

Cassava chips Blanching Machine

1 set

9

Cassava chips Air Drying Machine

1 set

10

Cassava chips Elevating Conveyor

1 set

11

Continuous Belt Frying Machine

1 set

12

Cassava chips Vibrating Deoiling Machine

1 set

13

Cassava chips Air Drying Machine

1 set

14

Elevating Conveyor

1 set

16

Automatic Packing Machine

1 set



Application

1. It is suitable for large and small potato chips, Cassava chips, banana chips,coconut chips and other processing workshop. According to your workshop area, we offer the best solutions to bring big benefits to you.

2. It can process all kinds of fruit and vegetable, especially root vegetables.



Video of cassava chips making machine
