Food Double Screw Extruder

Description:

There are two types of screw extruder in our company, single screw extruder and double screw extruder. The twin-screw extruder is made up of the feeding system, extruding system, cuttingg system, heating system, transmission system and controlling system. We will feed material from the deeding machine and get the tissuse state by inflating the material and the machine battel must be high temoerature, high pressure and high cutting. The materisl can be sterilized by the high temperature and high pressure and make the product safe.

Advantage

  • 1. Capacity: 100kg/h -500kg/h and work flow can be customized.
  • 2. Raw materials: all kinds of grain powder, such as wheat flour, corn powder, rice powder and so on.
  • 3. Products: Rice crusts, chips, bulges, pizza, rolls, doritos, kurkure, cheetos, etc.
  • 4. Can be used for production line of work flow: Mixer--- Screw Conveyor ---- Double Screw Extruder --- Compound Cutting Machine --- Auto Fryer --- Double Roller Flavor Machine --- Packaging Machine
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

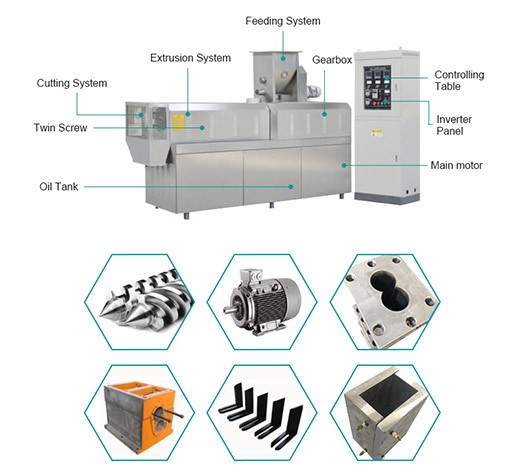

Introduction of double screw extruder

There are two types of screw extruder in our company, single screw extruder and double screw extruder. The twin-screw extruder is made up of the feeding system, extruding system, cuttingg system, heating system, transmission system and controlling system. We will feed material from the deeding machine and get the tissuse state by inflating the material and the machine battel must be high temoerature, high pressure and high cutting. The materisl can be sterilized by the high temperature and high pressure and make the product safe.

This equipment has the wide material, multi-shape products and flexible collocations. We can produce the different products according to the different models and collications.

Raw material:

Wheat flour,corn powder,rice powder and other grains powder.

Products:

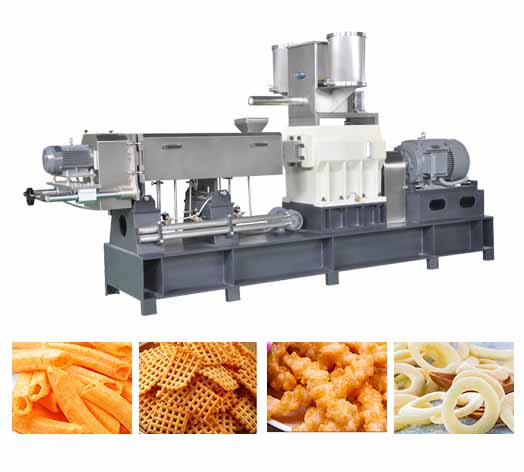

This extruder is suitable for producing puffing snacks food, bread crumbs, breakfast cereals, corn flakes, artificial rice, modified starch, baby rice powder, and dog pet feed and so on. The products have various types of shapes.

Features of double screw extruder

1.Made in China by adoption of Swiss technology

2.Derect coupling between motor and gearbox, reducing energy consumption.

3.Feeding, cutting and main drive all adopt frequency control of motor speed system with strong powder with strong power, stable aperformance and low consumption.

4.The screws are made from alloy materials by special technology. Sectional combined screws are suitable to wide range of materials. The screws have longer lifetime and self-cleaning function.

5.The automatic lubrication system lowers the energy consumption and prolongs the lifespan.

6.Double screws feed equal materials forcibly.

7.Cutting device uses hanging type die seat and linear bearing knife adjusting system, making it safe, accurate and fast in adjusting knives.

Food double screw extruding machine parameters

Model

Motor power

Output

size

Screw diameter

JX57-DSE

22/30kw

150-200kg/h

3500*800*2500mm

Φ55

JX65-DSE

37/45kw

200-350kg/h

3800*850*2800mm

Φ65

JX75-DSE

55/75kw

400-600kg/h

5000*1250*3500mm

Φ72

JX85-DSE

90/110kw

800-1500kg/h

6000*1250*3600mm

Φ82

JX95-DSE

110/132kw

1-2t/h

6000*1250*3600mm

Φ82

JX115-DSE

132/160kw

1.5-2.5t/h

7600*1300*3800mm

Φ110

JX132-DSE

132/160kw

2-3t/h

7600*1400*3800mm

Φ130





Application

Raw material: all kinds of grain flour
1. Small food processing plant, snack food factory, fruit processing plant.
2. Hotels, snacks store, small snack plant etc.

Video of food double screw extruding machine
