Industrial Kava Root Washing & Processing Line

Industrial Kava Root Washing & Processing Line:

Customizable Capacity: 100–5000kg/h

  • 1. Deep Cleaning: Bubble washing + High-pressure spray ensures 100% soil removal from crevices.
  • 2. Quality Preservation: Constant temperature drying protects natural Kavalactones.
  • 3. Complete Automation: Integrated solution from raw root washing to fine powder grinding.
  • 4. Food-Grade Durability: Full SUS304 stainless steel construction, ideal for island climates.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

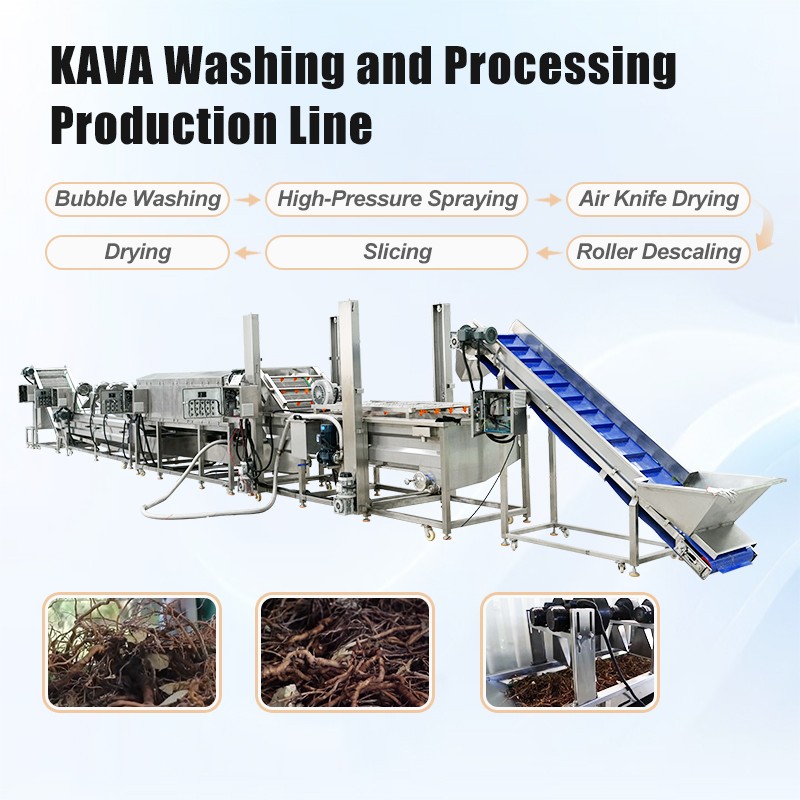

One-Stop Solution from Fresh Root to High-Quality Powder (Capacity: 100kg/h - 5000kg/h)



Kava (Piper methysticum) is highly valued in the herbal and beverage industries for its unique calming properties. As global demand rises, the need for efficient, eco-friendly processing equipment that preserves natural Kavalactones (active ingredients) has become critical.



Henan Joyshine Machienry Co., Ltd.



Joyshine Machinery provides integrated Kava root processing solutions designed to boost production efficiency and reduce labor costs while ensuring maximum purity and product quality. We offer highly flexible, customized configurations based on your specific capacity and facility layout.



Core Processing Flow:

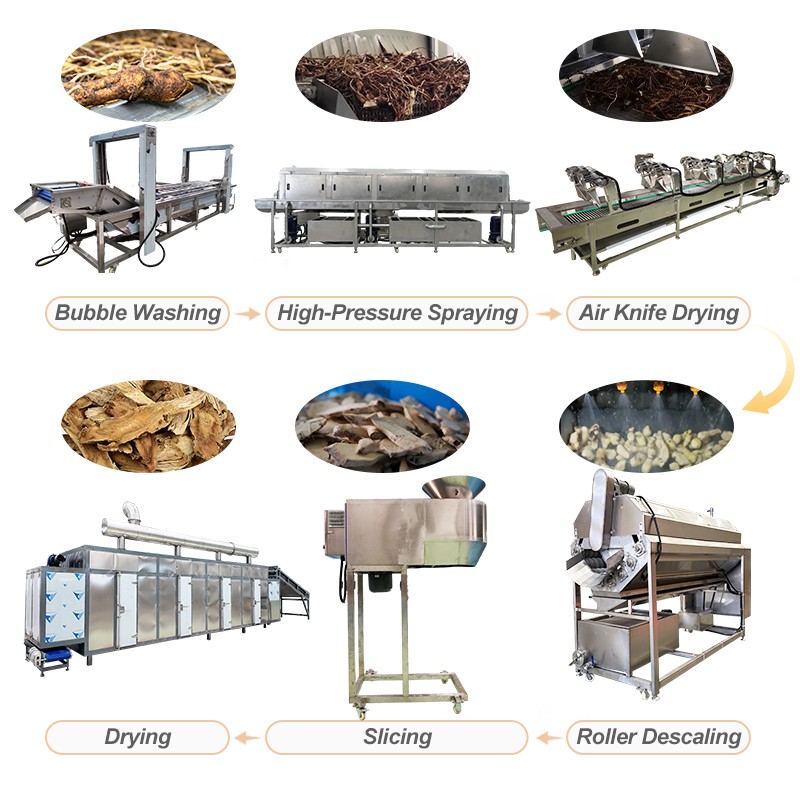

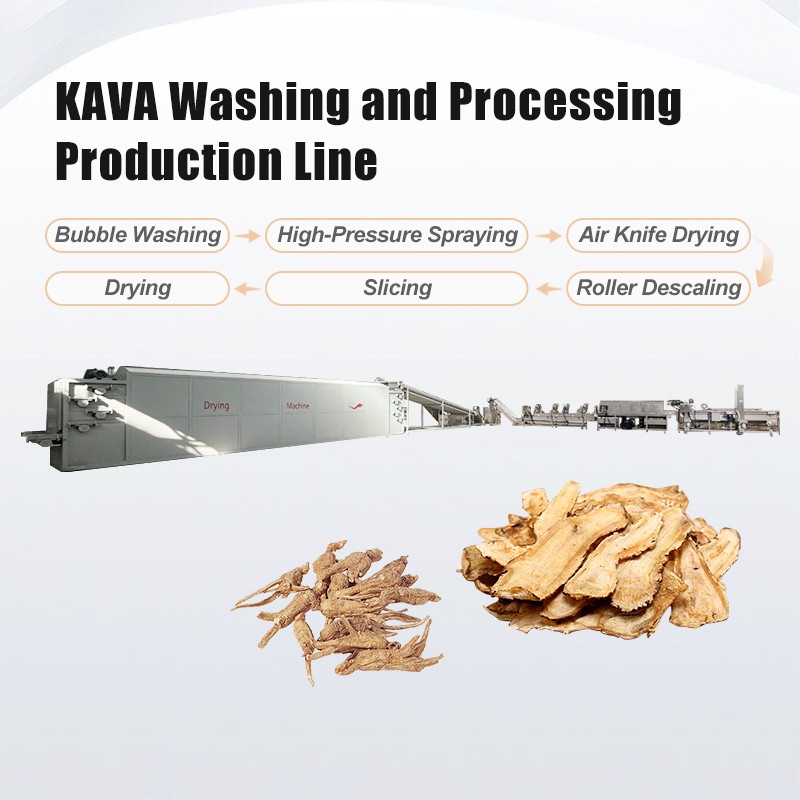

Bubble Washing ➔ High-Pressure Spraying ➔ Air-Knife Drying ➔ Brush Peeling ➔ Precise Slicing ➔ Constant Temperature Drying ➔ Fine Grinding



Henan Joyshine Machienry Co., Ltd.

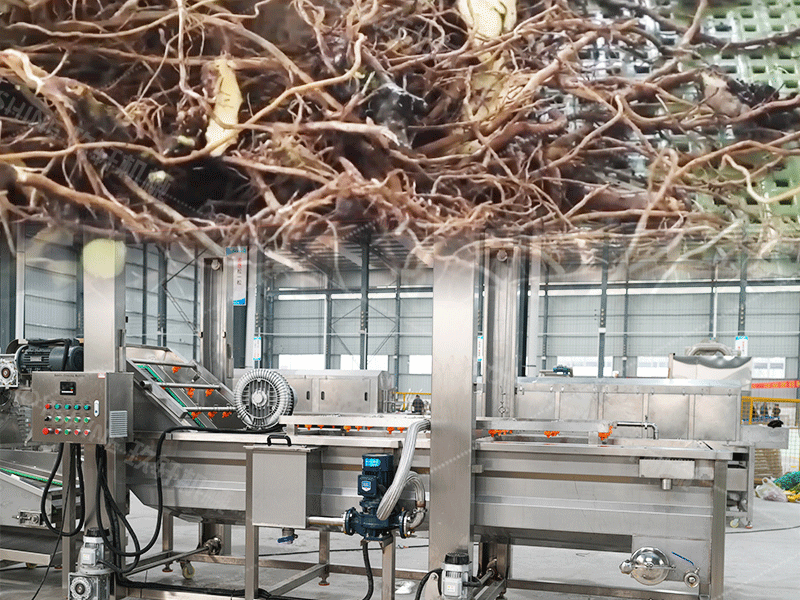

  • Bubble Washing: Uses high-pressure air bubbles to simulate manual scrubbing, effectively removing stubborn soil from the root crevices.



Henan Joyshine Machienry Co., Ltd.

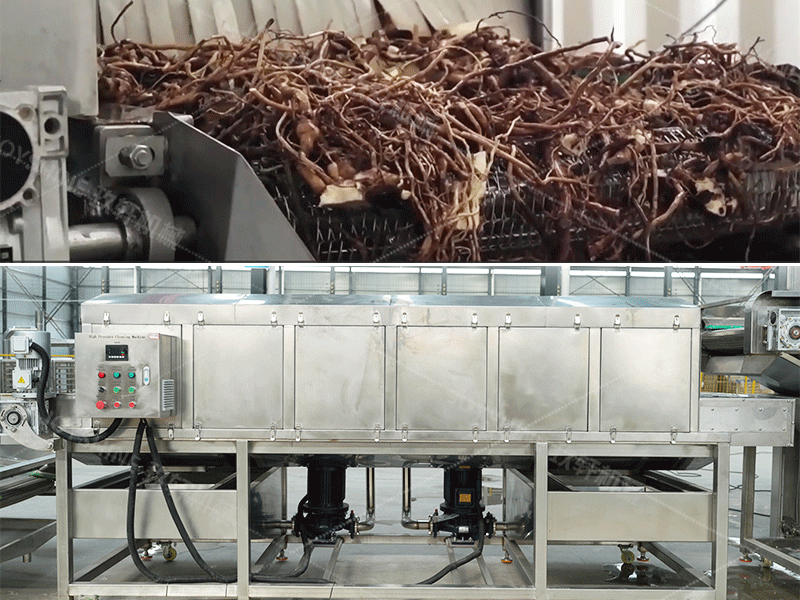

  • High-Pressure Spraying: A secondary precision rinse with clean water ensures 100% sand-free results, meeting food safety standards.



Henan Joyshine Machienry Co., Ltd.

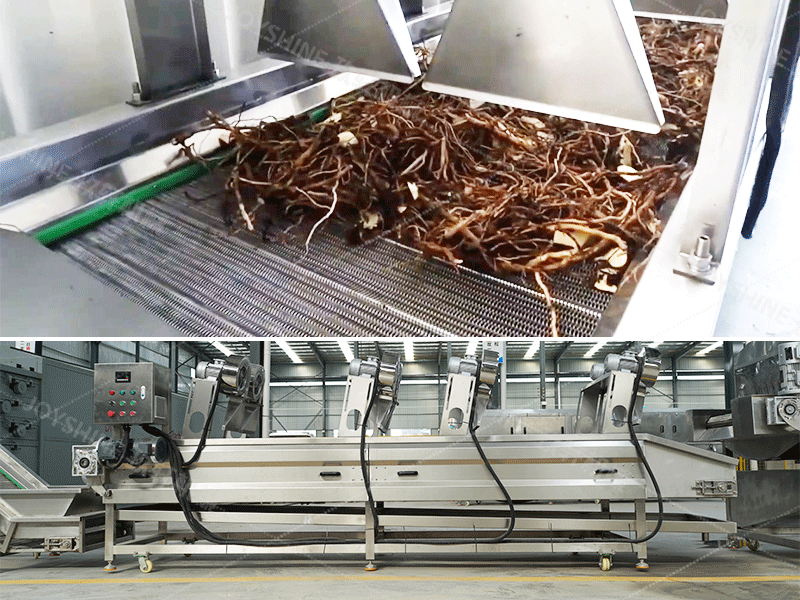

  • Air-Knife Drying: High-velocity fans quickly remove surface moisture, preventing microbial growth and preparing roots for peeling.



Henan Joyshine Machienry Co., Ltd.

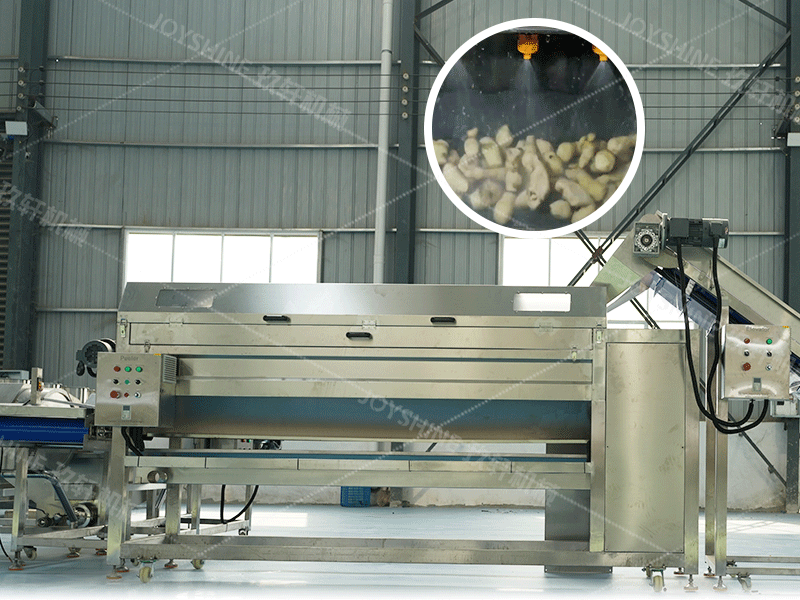

  • Brush Peeling: Rotating nylon brushes remove the outer skin while preserving the pure root meat and improving the final product's color.



Henan Joyshine Machienry Co., Ltd.

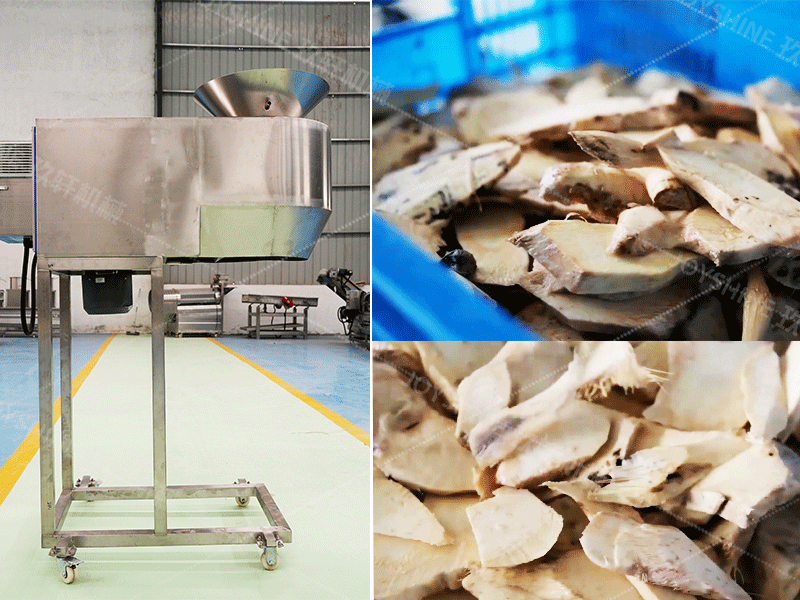

  • Precise Slicing: Processes peeled roots into uniform slices, significantly increasing drying efficiency and ensuring even heat distribution.



Henan Joyshine Machienry Co., Ltd.

  • Constant Temperature Drying: Utilizes precise temperature control (Heat Pump technology) to dry roots quickly while maximizing the retention of natural active ingredients.



  • Fine Grinding: Transforms dried slices into ultra-fine powder ready for international export.

  • High Efficiency & Energy Saving Our automated workflow replaces heavy manual labor, dramatically increasing output per hour. Equipment features energy-efficient motors and heat recovery designs to lower operational costs.



  • Customized Turnkey Solutions We offer versatile capacities from 100kg/h to 5000kg/h. Joyshine designs the optimal machine layout based on your actual facility dimensions to maximize space utilization.



  • Reliable & Eco-Friendly Materials All key components are built with SUS304 Food-Grade Stainless Steel, providing excellent corrosion resistance in tropical island climates. Integrated water-recycling systems meet modern sustainability requirements.



  • One-Stop Professional Service From initial consultation and site planning to equipment manufacturing, on-site installation, and technical training, Joyshine provides full life-cycle support to ensure a smooth production launch.

Parameters

Machine
Model
Dimension
Weight
Voltage
Power
Capacity
Elevator  JS-SD-150 3000*800*900mm 500kg 380V 6.6kw 1000kg/h
Automatic Bubble Washing Machine
JS-QPQX-4000
4000*1200*1300mm
700kg 380V
8.3kw
1000kg/h
High Pressure Cleaning Machine
JS-GYPL-3000
8000*1400*1600mm
600kg
380V
7kw
1000kg/h
Air Cooling Drying Machine
JS-FGX-4000
4000*1200*1300mm
700kg
380V
6.6kw
1000kg/h
Brush Peeling Machine JS-MG-2500 2500*1000*1200mm 650kg 380V 4.5kw 1000kg/h
Precision Slicing Machine JS-QP-800 1200*900*1350mm 280kg 380V 2.2kw 1000kg/h

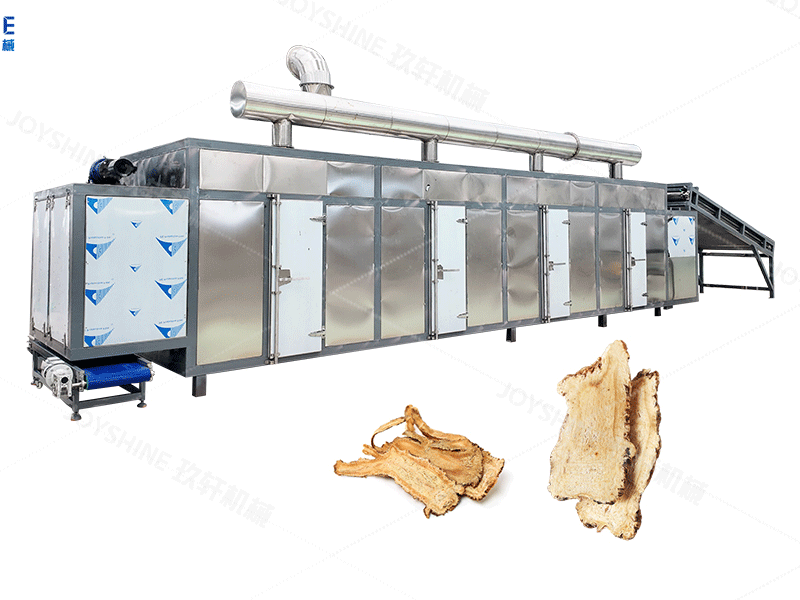

Continuous Mesh Belt Dryer JS-WD-8000 8000*2200*2500mm 2500kg 380V 22kw 1000kg/h

Note: The specifications listed above are for reference only. All equipment in the Kava processing line can be fully customized to meet your specific production needs, facility layout, and local voltage requirements.
Please contact us for a professional customized solution.



Applicable Scenarios

  • 1. Herbal & Health Supplement Processing Plants
  • 2. Agricultural Export & Deep-processing Facilities
  • 3. Commercial Dehydration & Powder Production Lines



Henan Joyshine Machienry Co., Ltd.Henan Joyshine Machienry Co., Ltd.Henan Joyshine Machienry Co., Ltd.Henan Joyshine Machienry Co., Ltd.



Applicable Materials

  • 1. Core: Kava (Piper methysticum)
  • 2. Others: Turmeric, Ginger, Ginseng, Cassava, Maca, Yam
  • 3. Flexible modules for diverse root & herbal processing



Video of Kava Root Washing Line

  •
  •
