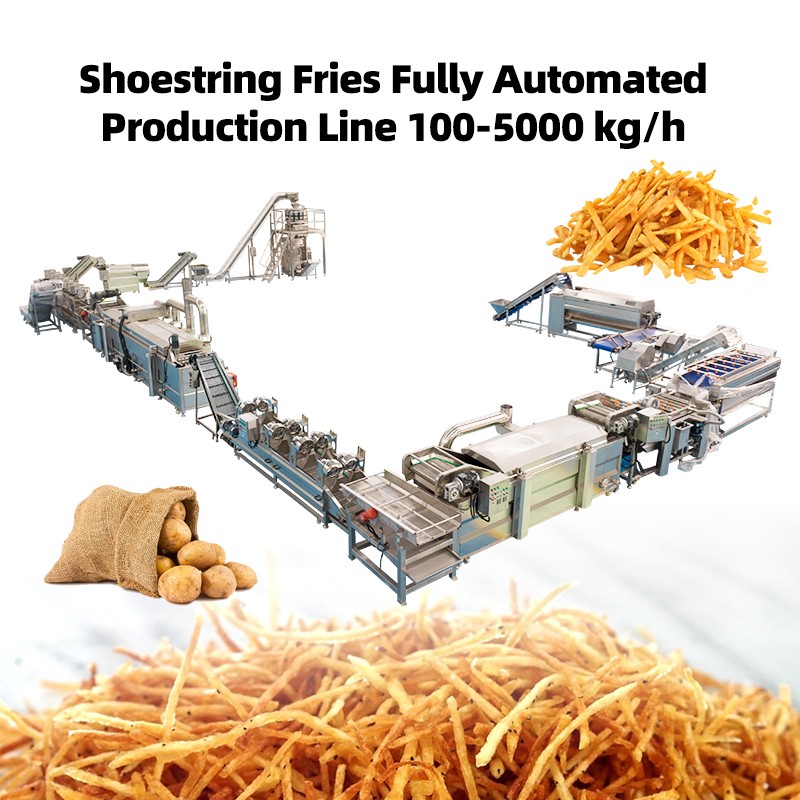

Shoestring Fries Fully Automated Production Line:

Joyshine provides a complete automated solution for shoestring fries production, suitable for continuous processing of potatoes and other root vegetables. The production capacity ranges from 100 to 5000 kg/h, and the line can be flexibly customized according to different factory scales.

The whole line integrates washing & peeling, cutting, blanching, dewatering, continuous frying, seasoning or IQF freezing, and automatic packaging, ensuring uniform product size and stable quality. It is ideal for french fries factories and frozen food processors.

Send E-mail Contact us
    • Description
    • Advantage
    • Parameters
    • Application
    • Video
Shoestring Fries are ultra-thin potato sticks with a typical cut size of 2×2 mm or 3×3 mm. Compared with regular frozen fries, they have a smaller diameter and larger surface area, which requires higher precision in raw material selection, cutting, and production line coordination.

Production Process Overview:

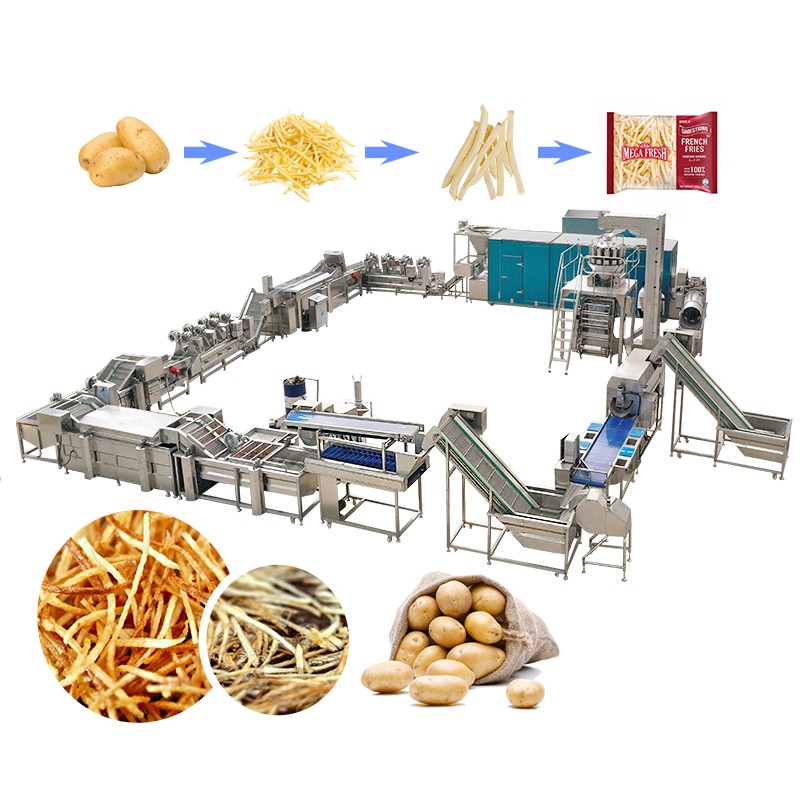

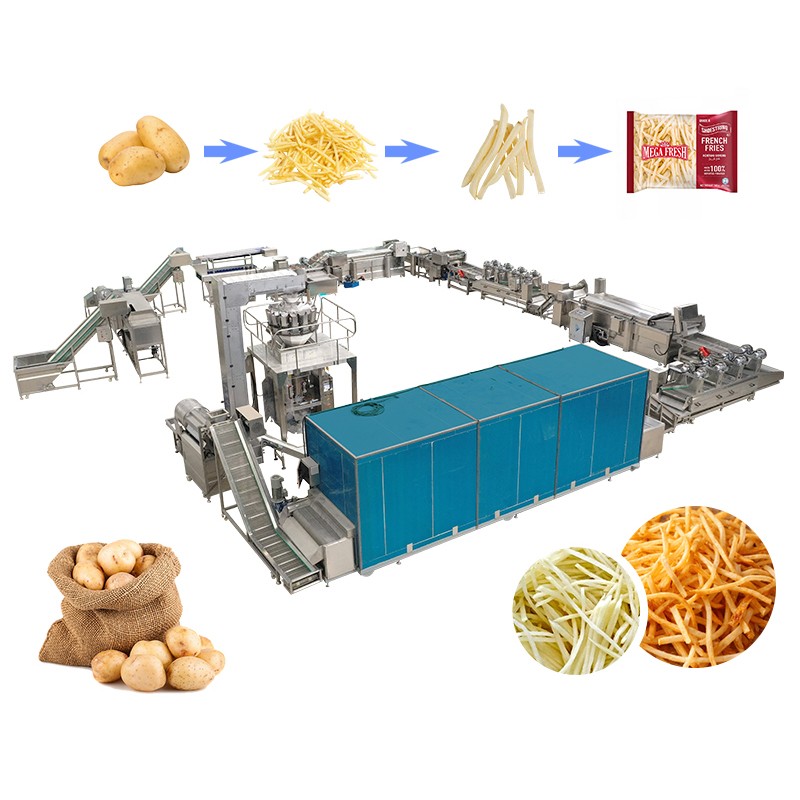

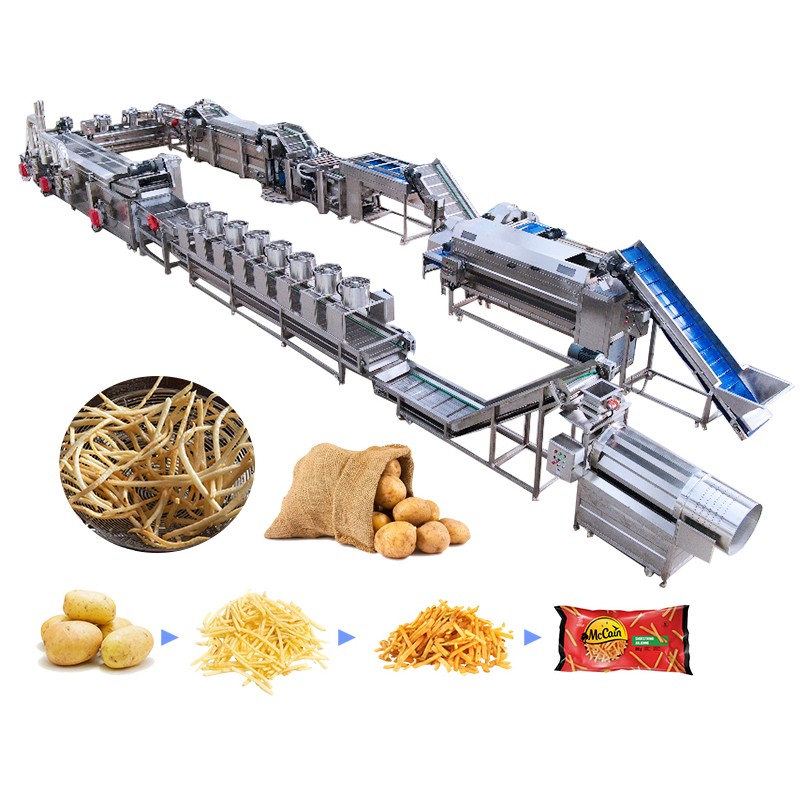

Raw Material Sorting → Brush Cleaning & Peeling → Cutting Machine → Blanching → Air Drying Line → Continuous Fryer → Vibration Oil Removal → Seasoning Drum / IQF Freezing → Continuous Packaging Machine

Henan Joyshine Machienry Co., Ltd.

The production line has a capacity range of 100–5000 kg/h, meeting the needs of small-to-medium batch production as well as large-scale manufacturing.

Raw Material Sorting

High-quality potatoes are the foundation for consistent Shoestring Fries. Joyshine’s production line handles potatoes with high dry matter content and long tuber shapes, ensuring complete fries and low processing loss. Stable raw material supply guarantees uniform texture and appearance in every batch.

Brush Cleaning & Peeling

Henan Joyshine Machienry Co., Ltd.

The cleaning and peeling stage uses a brush peeling machine to efficiently remove dirt and impurities while protecting potato integrity. This step ensures smooth downstream cutting, blanching, and frying, improving overall production stability and consistency.

Cutting Machine

Cutting is the core step for Shoestring Fries. Joyshine’s cutting machine can produce ultra-thin fries of 2–3 mm diameter, with adjustable sizes according to customer requirements. High-precision blades and a stable feeding system ensure uniform fry shapes and low breakage, providing consistent input for subsequent processes.

Blanching

Blanching removes excess starch, prevents sticking during frying, inhibits enzyme activity, stabilizes color, and partially sets the fry structure. Automated temperature control ensures uniform quality with minimal manual intervention, improving production line stability.

Air Drying Line

The air drying line rapidly removes surface moisture, controls oil absorption, and prevents sticking during frying, providing ideal conditions for the continuous fryer.

Continuous Frying & Vibration Oil Removal

Henan Joyshine Machienry Co., Ltd.

The continuous fryer is the key equipment for Shoestring Fries, ensuring even heat distribution and precise oil temperature, suitable for ultra-thin fries with minimal breakage. Vibration oil removal further reduces oil content, producing crispy, golden fries.

Seasoning & Freezing (Optional)

Shoestring Fries can be processed with seasoning or freezing, depending on customer needs, or both.

Seasoning
Fries can pass through a seasoning drum for even coating. Gentle tumbling ensures uniform flavor coverage, and seasoning can be customized according to client requirements.

Freezing
For products requiring frozen storage or long-distance transport, fries can be processed through IQF freezing, preserving shape, texture, and extending shelf life, suitable for bulk storage and shipment.

Packaging

Finally, fries are packed by a continuous packaging machine, maintaining product integrity and quality while improving production efficiency. The fully integrated process ensures uniform shape, golden color, and stable production for every batch of Shoestring Fries.
Factory Direct Supply: Joyshine owns its production line with self-developed core equipment, ensuring stable and reliable quality.

Flexible Customization: Cut size, capacity, seasoning, and freezing options can be tailored to client needs.

Turnkey Solution: Fully automated from raw material handling to packaging, reducing manual intervention.

Reliable Quality: High-precision cutting, continuous frying, and vibration oil removal guarantee uniform, golden, and crispy fries.

Parameters

No.

Name

Quantity

1

Elevating Conveyor

1 set

2

Potato Washing and Peeling Machine

1 set

3

Picking Line

1 set

4

Potato Cutting Machine/french fries cutting machine

1 set

5

Potato sticks pre washing machine

1 set

6

Chips roller picking machine

1 set

7

Bubble Washing Machine

1 set

8

Blanching Machine

1 set

9

Air Drying Machine

1 set

10

Elevating Conveyor

1 set

11

Continuous Belt Frying Machine

1 set

12

Vibrating Deoiling Machine

1 set

13

Air Drying Machine

1 set

14

Elevating Conveyor

1 set

15

Freezing Machine

1 set

16

Automatic Packing Machine

1 set



Application

1. Industrial-Scale Shoestring Fries Production

Designed for french fries factories producing shoestring fries in large volumes. The line supports both seasoned ready-to-eat fries and IQF frozen fries, enabling manufacturers to develop different product types based on market demand.



2. Multi-Material Processing for Root Vegetables & Fruits

The same processing line is suitable for potatoes, sweet potatoes, cassava, taro, yam, and even fruits such as bananas. It can be used to produce potato chips, root vegetable chips, and fruit chips, helping manufacturers expand their product portfolio with flexible production options.



3. Scalable & Flexible Line Configuration

The production line can be configured modularly according to capacity requirements and is easy to upgrade for future expansion. It can also be seamlessly integrated with existing washing, frying, seasoning, or freezing lines, making it suitable for factories planning phased investments or gradual capacity growth.
