Strawberry Washing Line
High-Efficiency Industrial Strawberry Washing Line:
Customizable Capacity: 100–5000kg/h
- 1. Bubble Washing + Rotating Roller Air Drying: Gently cleans and removes impurities while protecting fruit integrity
- 2. Manual Sorting: Ensures consistent quality and improves yield
- 3. Modular Design: Easily expandable into a complete fruit processing line
- 4. Multi-Fruit Compatible: Strawberries, blueberries, cherry tomatoes, and more
- Description
- Advantage
- Parameters
- Application
- Video

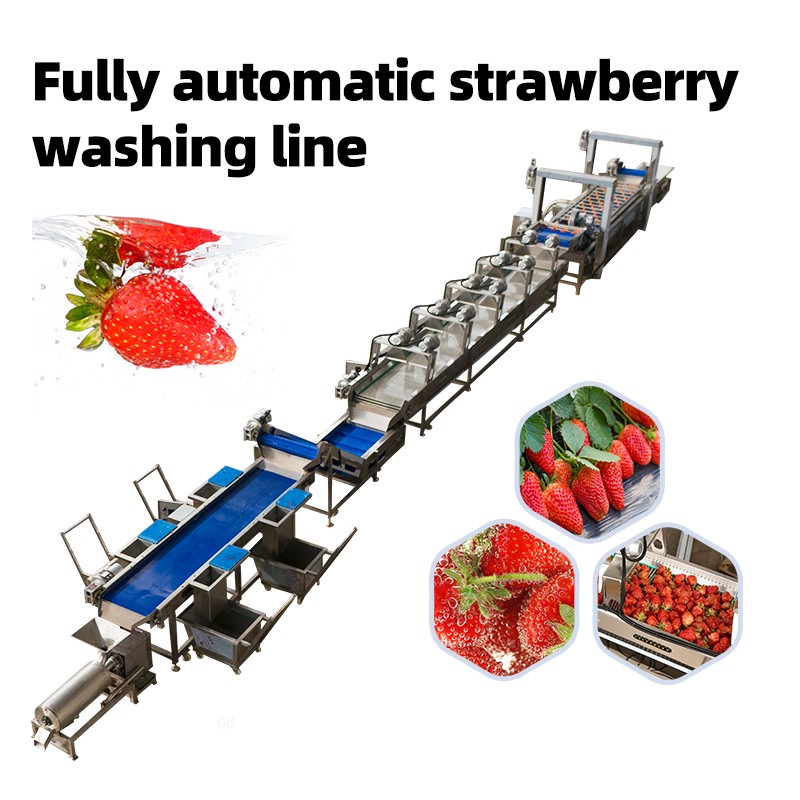

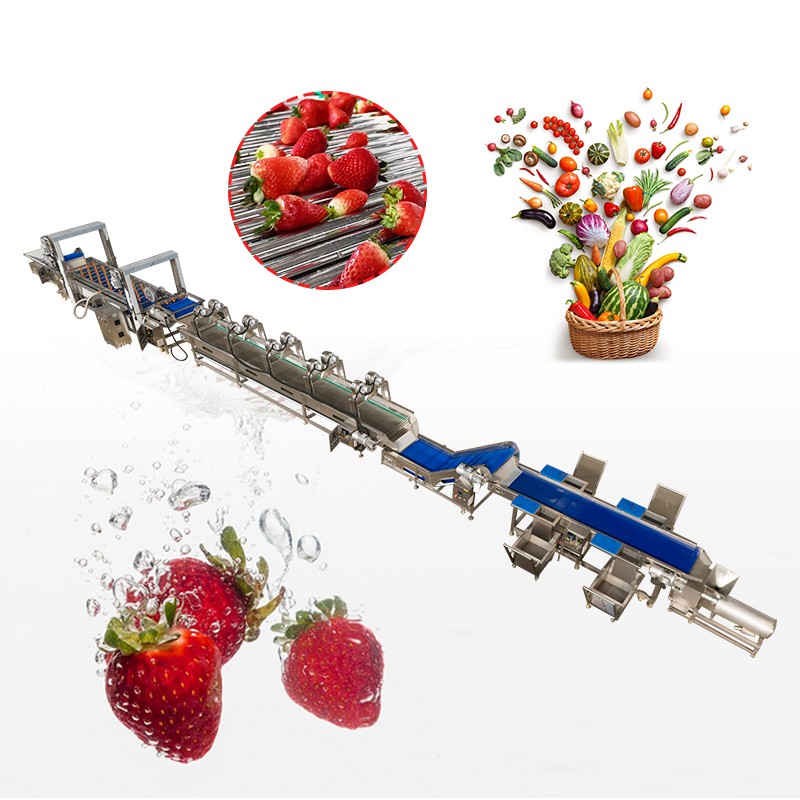

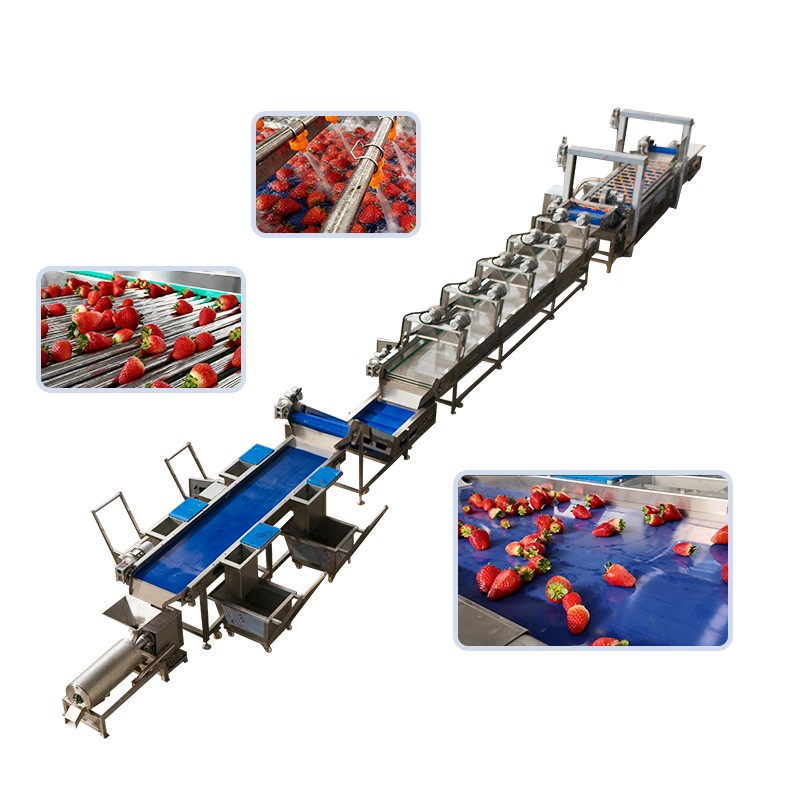

The Joyshine strawberry washing line is a high-efficiency industrial fruit and vegetable washing line, specially designed for strawberries and other delicate fruits. Its production capacity can be customized according to customer needs, ranging from 100 to 5000kg/h, making it suitable for food processing factories, fruit and vegetable processing plants, and frozen fruit production facilities.

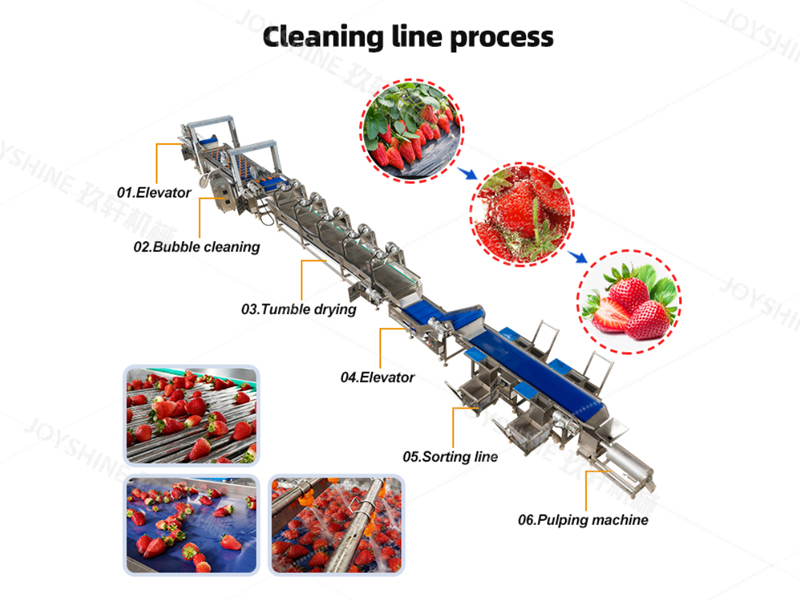

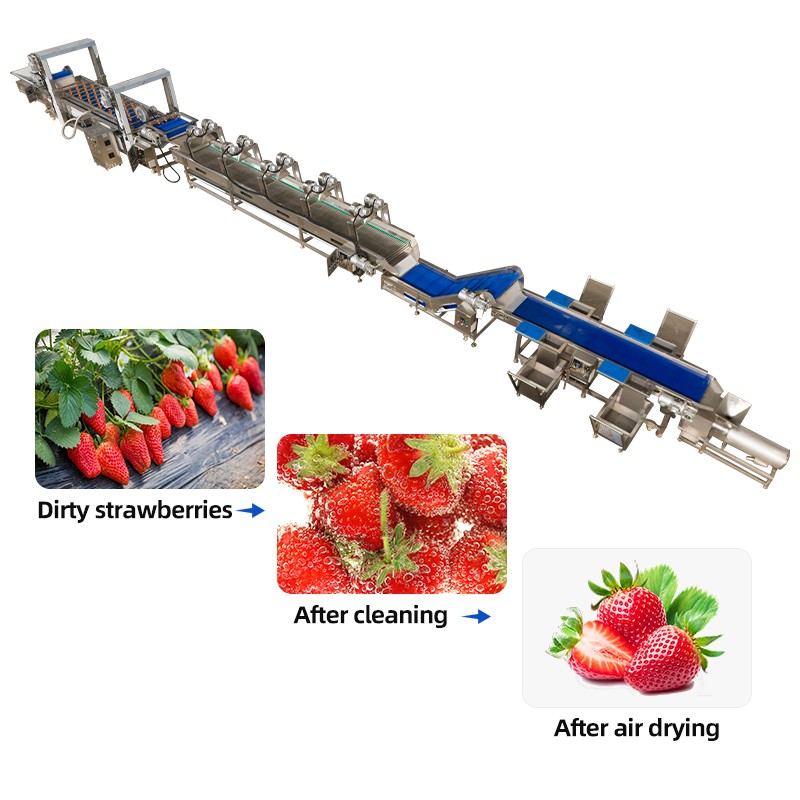

Feeding / Lifting → Bubble Washing Machine → Rotating Roller Air Dryer → Manual Sorting Table → (Optional Expansion: High-Pressure Spray Washer / Ozone Sterilization / Cutting Machine / IQF Freezing System / Automatic Packaging)
Core Equipment
Bubble Washing Machine: Uses bubble vibration to gently clean surface impurities on strawberries, minimizing fruit damage and maintaining product integrity.
Rotating Roller Air Dryer: Removes surface water through roller rotation and airflow, improving efficiency for subsequent packaging or processing.

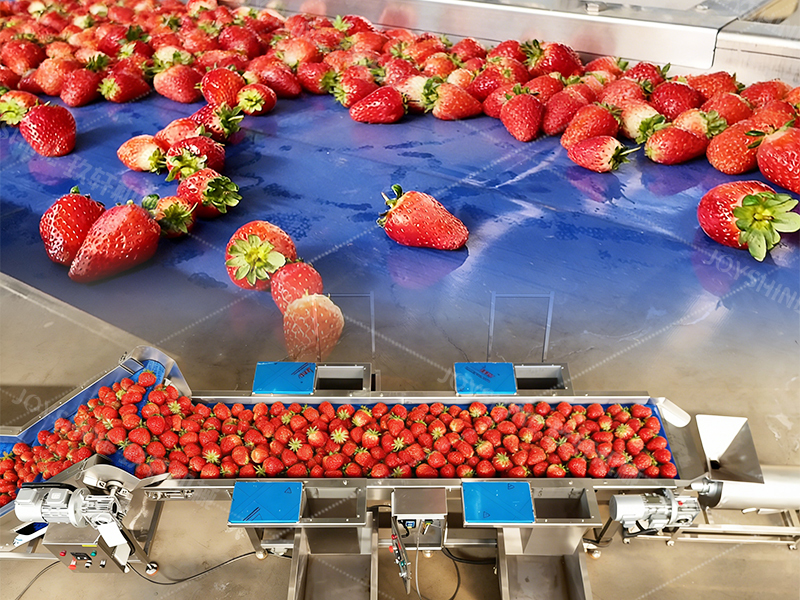

Manual Sorting Table: Ensures consistent quality of each strawberry, removes defective fruits, and improves overall yield.
Depending on customer requirements, optional expansion equipment can be configured, including high-pressure spray washers, ozone sterilization units, cutting machines, IQF freezing systems, and automatic packaging machines.
With flexible combination options, customers can design a complete, professional, and efficient strawberry or fruit and vegetable processing line according to their production capacity, product type, and factory layout. This washing line is also suitable for blueberries, cherry tomatoes, and other delicate fruits, meeting diverse fruit and vegetable processing needs while helping customers improve production efficiency, reduce labor costs, and ensure product quality.
Flexible Capacity
The strawberry washing line can be customized from 100 to 5000kg/h, suitable for fruit and vegetable processing of different scales.
Gentle Cleaning
Bubble washing + rotating roller air drying protects delicate fruits such as strawberries, minimizing breakage.
Modular Combination
Equipment can be configured according to requirements and easily expanded into a complete fruit and vegetable washing production line.
Stable and Durable
Industrial-grade construction supports continuous operation, is easy to maintain, and ensures long-term reliable use.
Parameters
| Machine |
Model
|
Dimension
|
Weight
|
Voltage |
Power
|
Capacity
|
| Elevator | JS-SD-150 | 3000*800*900mm | 500kg | 380V | 6.6kw | 1000kg/h |
| Automatic Bubble Washing Machine |
JS-QPQX-4000
|
4000*1200*1300mm
|
700kg | 380V |
8.3kw
|
1000kg/h
|
| Rotating Roller Air Dryer |
JS-FGX-4000
|
4000*1200*1300mm
|
700kg
|
380V |
6.6kw
|
1000kg/h
|
| Hand Picking Machine |
JS-TJX-5000
|
3000*800*900mm
|
200kg
|
380V |
5.3kw
|
1000kg/h
|
Customization (OEM/ODM Available)
The specifications above are for reference only. The actual configuration can be customized according to your required capacity, product type, and factory layout.
According to different fruit and vegetable cleaning requirements and food safety standards, optional equipment such as high-pressure spray washers, ozone sterilization systems, ultrasonic cleaning modules, cutting machines, IQF freezing systems, and automatic packaging machines can be integrated. Through flexible combinations, Joyshine helps customers build a fruit and vegetable washing and processing line that best matches their specific processing needs.
Applicable Scenarios
The Joyshine strawberry washing line is suitable for food processing factories, fruit and vegetable deep-processing plants, and frozen fruit production facilities. Whether for strawberry washing, grading, frozen packaging, or front-end cleaning of fruits and vegetables, this equipment efficiently handles washing, air drying, and sorting tasks.
Applicable Materials
In addition to strawberries, this washing line can process blueberries, cherry tomatoes, cherries, raspberries, blackberries, and other delicate fruits. Optional expansion equipment such as high-pressure spray washers, ozone sterilizers, or cutting machines increases flexibility, allowing the line to meet diverse fruit and vegetable processing needs and enable multi-product production.
