Fluidized Bed IQF Freezer | Industrial Fast Freezing Machine

The Joyshine Continuous Fluidized IQF Freezer is engineered for high-efficiency individual quick freezing, utilizing advanced suspension-state airflow.

It provides rapid, uniform freezing for diced fruits, vegetables, seafood, and small meat products, preventing clumping and meeting strict global HACCP hygiene standards.

Send E-mail Contact us
    • Description
    • Advantage
    • Parameters
    • Application
    • Video
Description

Henan Joyshine Machienry Co., Ltd.

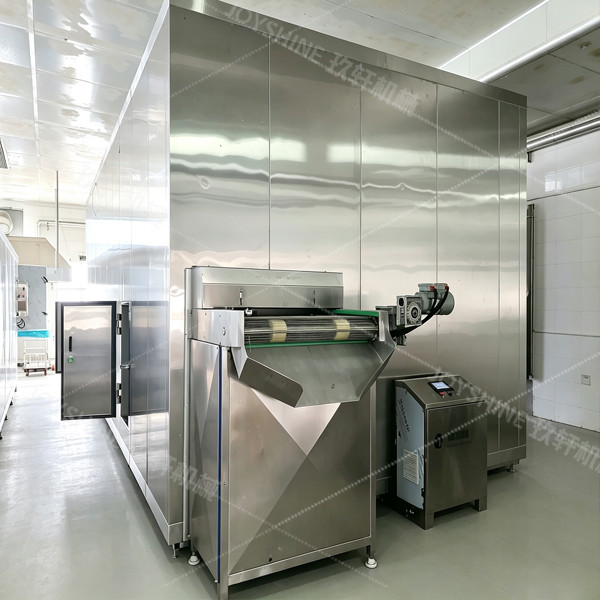

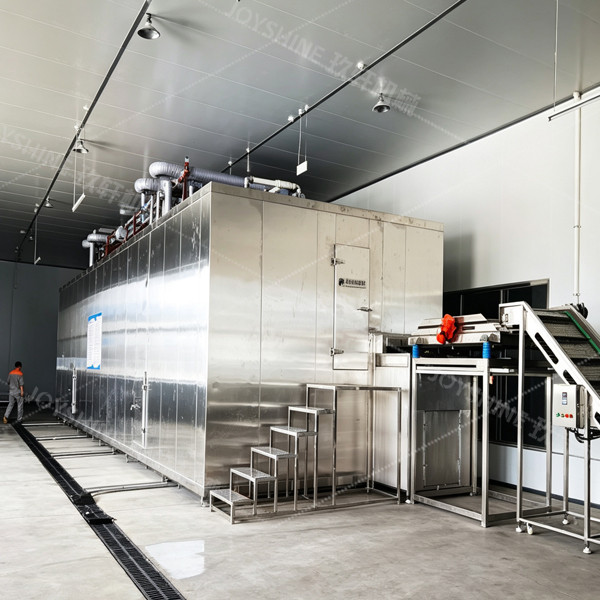

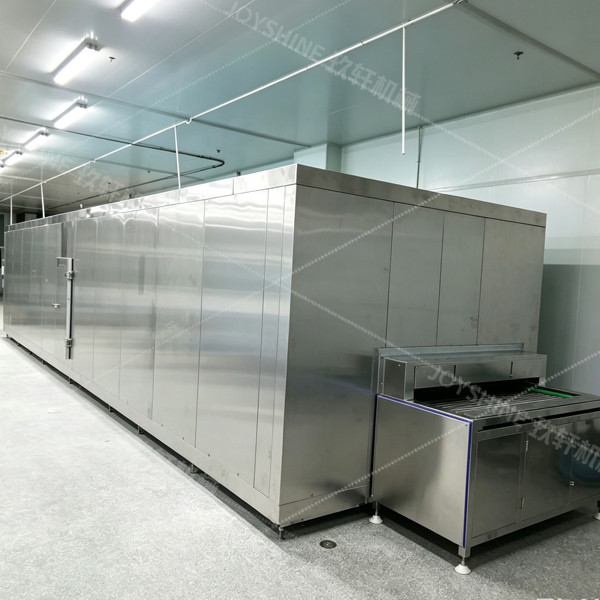

The Joyshine Continuous Fluidized IQF Freezer is custom-engineered for high-efficiency individual quick freezing of small, diced, or fragile food products, such as shrimps, seafood, sweet corn, green peas, diced carrots, and broccoli florets.

Built with a fully enclosed food-grade stainless steel housing, the system blows high-velocity cold air at -35°C to -40°C upward through the mesh belt to suspend food particles in a dynamic "fluidized state". This ensures 360-degree rapid crust freezing, quickly bringing core temperatures down to -18°C while locking in cellular moisture and completely preventing product sticking and clumping.



Why Choose Joyshine IQF Freezing Line?

Dual-Stage Fluidized Freezing
Independent pre-cooling and deep-freezing belts ensure rapid crusting to protect fragile items and eliminate clumping completely.

Dynamic Suspended Airflow
High-pressure fans supply -35°C to -40°C upward air to keep both lightweight vegetables and dense seafood suspended in mid-air.

Continuous 24/7 Operation
Advanced hot gas/water defrosting setup minimizes frost buildup, supporting uninterrupted, heavy-duty production runs.

Hygienic SUS304 Build
Full stainless steel body with sloped drainage base prevents water pooling and bacterial growth for fast daily washdowns.



Technical Specifications
Specification Item Technical Data / Standard Value
Processing Capacity 500 kg/h – 3,000 kg/h (Customizable)
Freezing Time 5 – 25 minutes (Adjustable)
Air Temperature Inside Chamber -35°C to -40°C
Inlet / Outlet Product Temp. Inlet: +15°C | Outlet: ≤ -18°C (Core)
Refrigerant Compatibility R404A / R507 / Ammonia (R717) / CO2
Conveyor Belt Material Food-grade SUS304 Stainless Steel Mesh Belt
Main Machine Structure Fully Welded SUS304 Frame & PU Insulation Enclosure
Control System PLC Touchscreen Interface + Variable Frequency Drive (VFD)
Note: Parameters can be adjusted based on product type, plant layout, and specific project needs. This IQF freezer can be seamlessly integrated with washing, blanching, air-drying, sorting, and packaging equipment into a fully automated processing line.



Industrial Application
IQF Frozen Products
✓ VERSATILE RAW MATERIALS
Vegetables (sweet corn, green peas, diced carrots, broccoli), fruits & berries, peeled shrimps, seafood, diced meat, and prepared foods.
✓ TARGET BUSINESSES
Industrial-scale frozen food manufacturers, commercial seafood exporters, fruit/vegetable processing plants, and ready-to-eat meal factories.
