Complete Black Truffle Washing and Air-Drying Production Line Solution

July 22, 2026

For black truffle exporters and cultivation bases in Latin America, maximizing yield and shelf life starts with proper processing. During every harvest season, "cleaning" is often the biggest pain point. Black truffles feature natural folds and are covered in stubborn clay and fine sand. Manual scrubbing is extremely inefficient and cannot handle high-tonnage orders, while ordinary fruit washing machines easily cause surface damage or moisture retention leading to mold.

As an enterprise with deep expertise in food machinery, Joyshine Machinery leverages its robust customization capabilities to provide a tailor-made complete black truffle washing and air-drying production line solution, achieving the perfect balance between "efficient mass production" and "delicate product protection."

Key Equipment & Technological Process

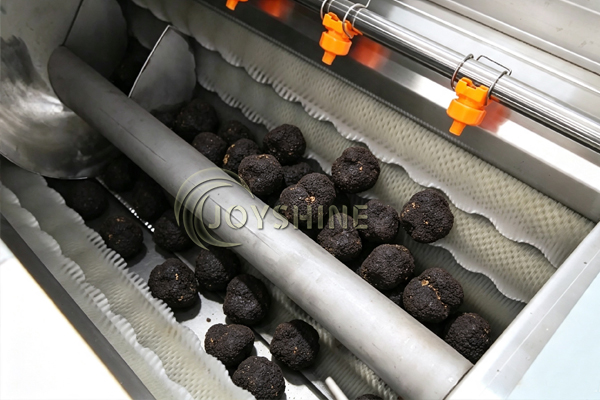

1. Brush Roller Washing Machine (Dry Cleaning Pretreatment)

Henan Joyshine Machienry Co., Ltd.

Newly harvested black truffles are usually wrapped in thick clay. We utilize a food-grade soft brush roller washing machine to perform a gentle dry cleaning process with little to no water. The rotating soft brushes efficiently peel off large chunks of surface clay and dust, greatly reducing the subsequent washing load and preventing mud from contaminating the water.

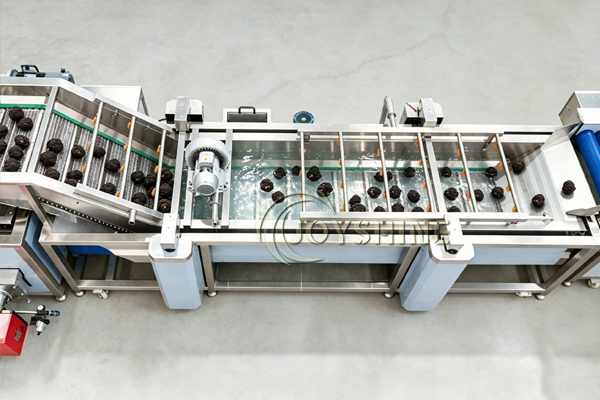

2. Air Bubble Washing Machine (Main Washing Process)

Henan Joyshine Machienry Co., Ltd.

The pretreated truffles enter the air bubble washing machine. High-pressure blowers at the bottom of the tank continuously generate dense bubbles that burst underwater, releasing micro-vibration forces. The truffles float and tumble gently in the water flow, using this "water flow massage" to thoroughly dislodge fine sand particles hidden deep within the folds, ensuring zero mechanical damage.

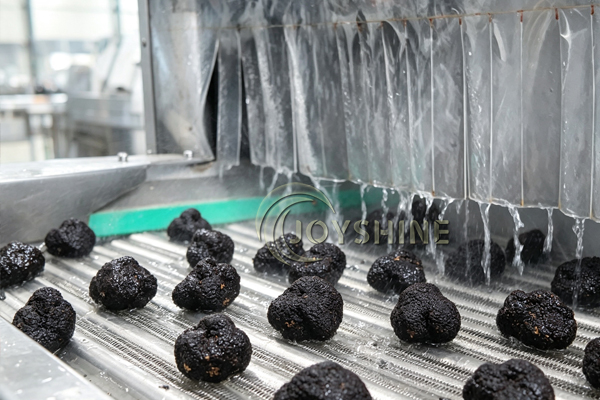

3. High-Pressure Spray Rinsing

Henan Joyshine Machienry Co., Ltd.

Upon exiting the main washing tank, the truffles are elevated by a conveyor belt and pass through multiple rows of stainless steel fan-shaped nozzles for high-pressure spray rinsing. Purified water is used for a 360-degree three-dimensional wash, which, combined with a multi-stage circulating filtration system, completely removes surface froth and dust, fully complying with international hygiene standards for food export.

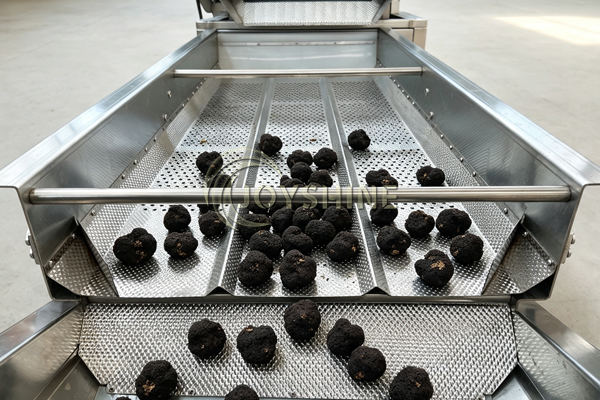

4. Vibration Dewatering Machine

Henan Joyshine Machienry Co., Ltd.

To prevent truffles from carrying an excessive water load during subsequent drying, the washed material first passes through a vibration dewatering machine. Through high-frequency vibrations, excess surface water is rapidly shed, spreading the truffles evenly to set the stage for deep surface drying.

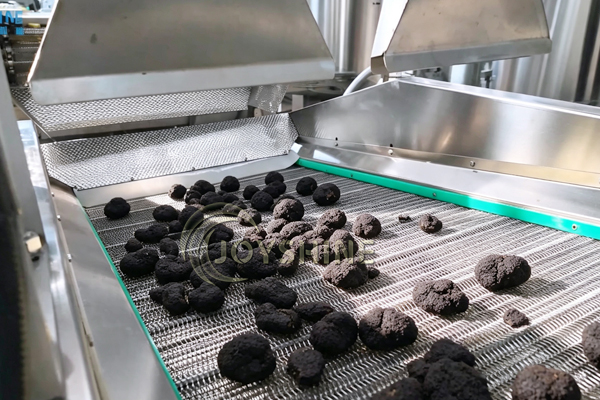

5. Air Dryer

Henan Joyshine Machienry Co., Ltd.

"Drying" is the lifeline determining the shelf life of black truffles. After vibration dewatering, the truffles immediately enter the air dryer, utilizing multiple groups of high-volume normal-temperature air knives to instantly blow away residual micro-droplets on the surface. This step completely eliminates the risk of mold caused by moisture retention, seamlessly connecting to subsequent vacuum packaging, grading, or quick-freezing (IQF) processes.

Why Choose Joyshine Machinery?

  • Demand-Based Capacity & Customization: Whether it is a small-to-medium cultivation farm in Latin America or a large-scale export processing plant with a daily throughput of several tons, we can flexibly adjust the brush roller speed, bubble tank length, and modular combinations based on your actual plant space and daily production requirements, rejecting one-size-fits-all standard machines.
  • Truffle-Optimized Damage Protection: The variable frequency speed control system precisely regulates the rhythm of the conveyor belt and rollers; the fully smooth arc overflow design is specifically optimized for the delicate skin of black truffles, minimizing the damage rate to the lowest possible level.
  • Food-Grade Standards: The entire machine is manufactured using high-quality SUS304 stainless steel, which is corrosion-resistant, easy to clean, and fully compliant with international food safety and export hygiene standards.
Ready to Upgrade Your Truffle Processing Line?
Get your customized black truffle washing and air-drying line configuration and quotation today!
