Bubble Washing Machine

Description:

This vegetable water bubble vegetables washing machine is designed and widely used in washing various fruits and vegetables with different shapes.
It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
Working principle: This multifunctional bubble washing machine works through high pressure water flow and water bubbles to impact and scrub of the cleaner objects.

Product Advantage:

  • 1. Multifunction, wide application, no damage to our products.
  • 2. Mesh belt conveying, speed adjustable.
  • 3. With secondary spray system and water recycling system, saving water
  • 4. It can add 0 zone and ultrasonic generator.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

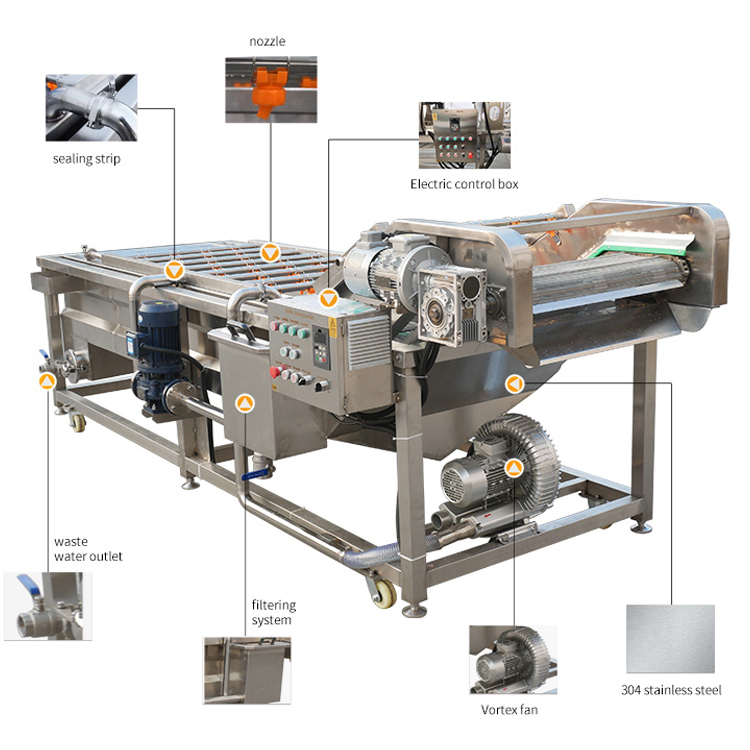

Description

1. Spray nozzles
2. Overflow gap
3. Waste water outlet
4. Filtering system
5. Electrical apparatus element
6. Secondary spray system
7. With sealing strips
8. Vortex blower
9. With sealing strips
10. Vortex blower

Products features

1. Equipped with a bubble generator to make the objects roll over High pressure air bubble and spraying water can wash off dirt, sands and other residues
2. Equipped with VFD to better adjust the belt speed
3.Equipped with separate filter tank and water recycling system
4. Equipped with spraying section with clean water for twice washing The objects are automatically conveyored to spraying section by the conveyor mesh belt

Advantage

  • 1. Multifunction, wide application, no damage to our products.
  • 2. Mesh belt conveying, speed adjustable.
  • 3. With secondary spray system and water recycling system, saving water
  • 4. It can add 0 zone and ultrasonic generator.

OEM Service

  • According to the customers' special requirements, there are following optional configurations:
  • 1. Ozone generator for sterilization and disinfection and decomposition of pesticide residues
  • 2. Ultrasonic module through ultrasonic vibration to clean the products completely
  • 3. Air fans to be added at the outlet for simple frying after washing
  • 4. Lifting device can be added to life the mesh belt for easy cleaning of the tank
  • 5. Any other functions you need, tell us freely, we will design special machine for you

Parameters

Model

Dimension(mm)

Power(kw)

Capacity(kg/h)

JSQP2500

2500*1000*1300mm

4.45kw

500-800kg/h

JSQP4000

4000*1200*1300mm

6.6kw

800-1500kg/h

JSQP5000

5000*1200*1300mm

8.3kw

1200-2000kg/h

JSQP6000

6000*1200*1300mm

9.4kw

2500-3000kg/h



Application

1. Restaurant, kitchen, food factory, farm etc.
2. It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.
3. This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine



Video
