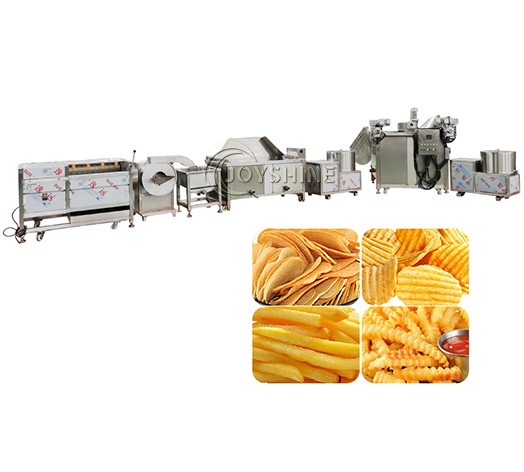

Semi-automatic French Fries Production Line

Description:

This set of production line is mainly for french fries processing. It can make potato cut into strips and chips easily. But it needs people to operate. Compared with fully automatic french fries potato chips production line, it is the first choice for small process enterprise.

Product Advantage:

  • 1. Its capacity is about 30-500kg/h. Meanwhile, we can accept customized service.
  • 2. Heating method: electric or gas heating you can choose.
  • 3. It is easy, safe and hygienic to operate.
  • 4. The materials are from excellent stainless steel.
  • 5. Final products: potato chips, french fries and banana chips.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Description

This set of production line is mainly for french fries processing in Joyshine. It can make potato cut into strips and chips easily. But it needs people to operate. Compared with fully automatic french fries potato chips production line, it is the first choice for small process enterprise.

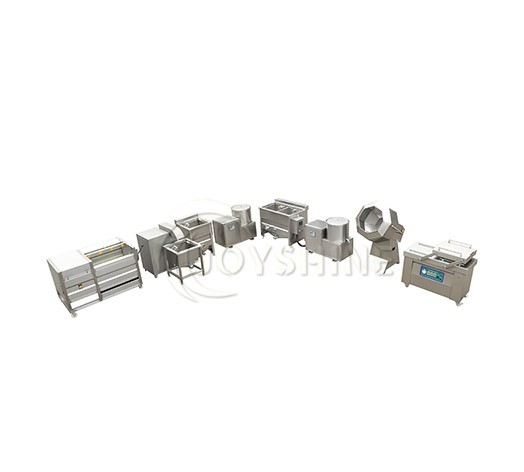

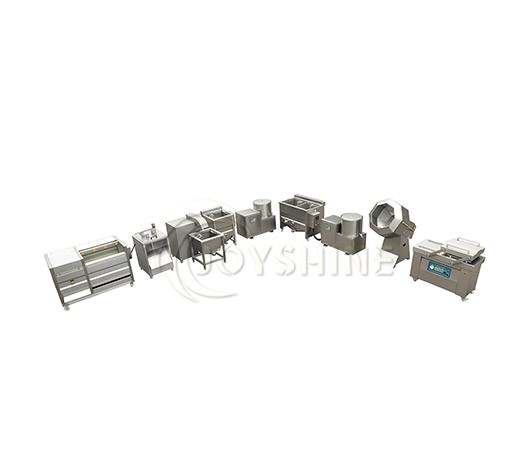

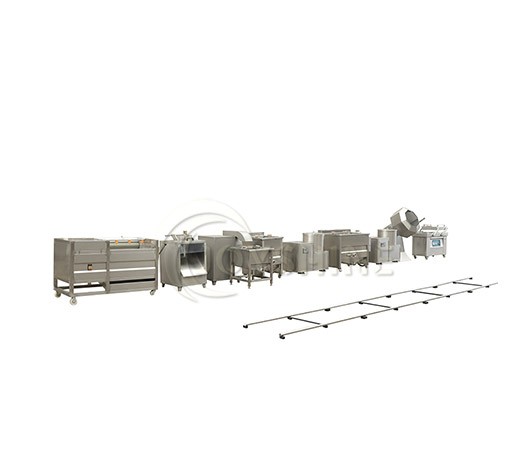

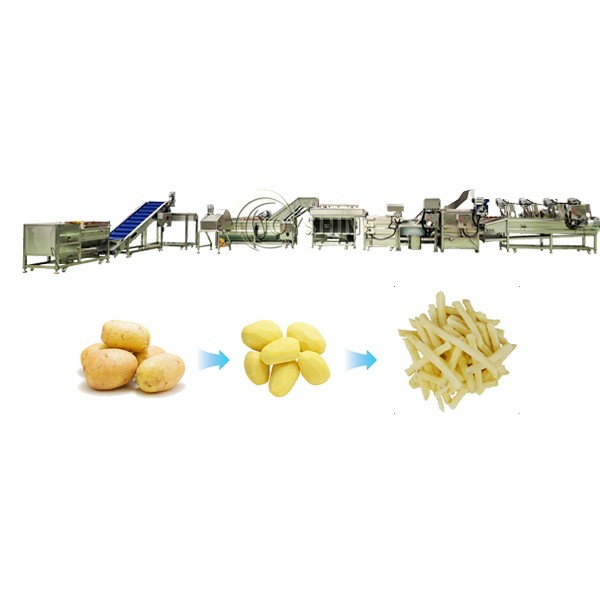

Work flow of semi-automatic potato chips&french fries production line

Potato peeling machine → potato cutting machine/french fries machine → blanching machine → dehydrator → deep fryer → deoiling machine → seasoning machine → packing machine

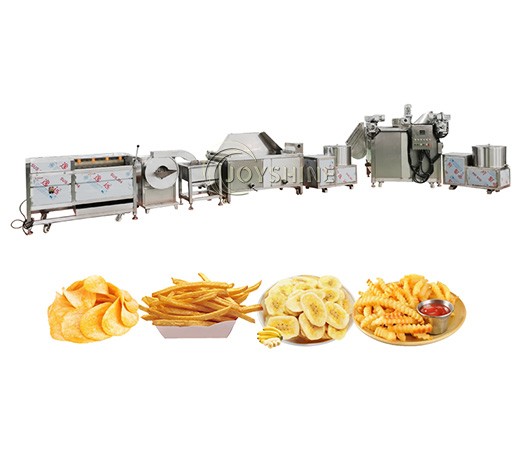

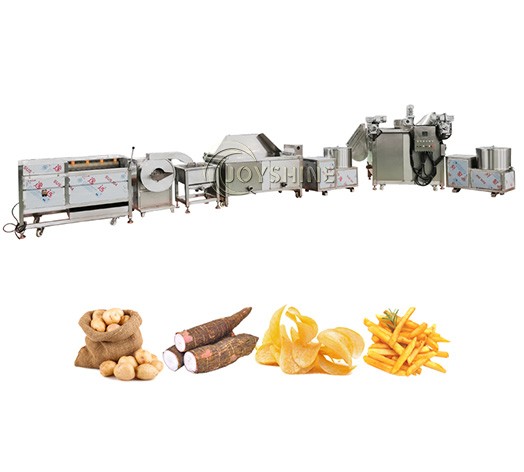

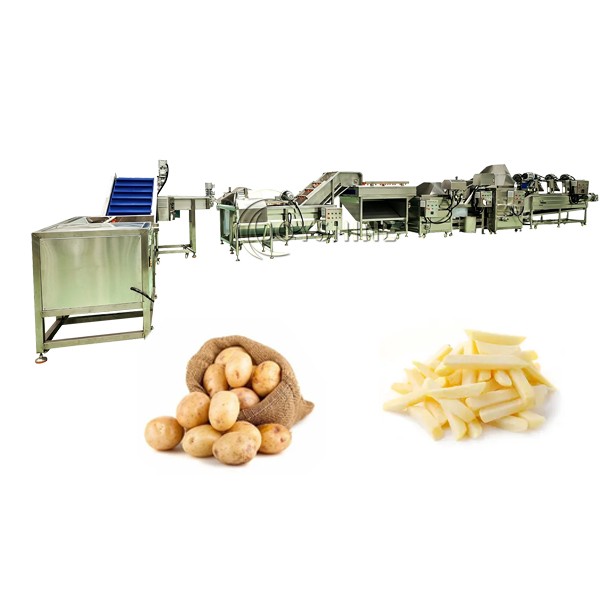

semi automatic potato chips and french fries production line

Introduction of different potato making machine

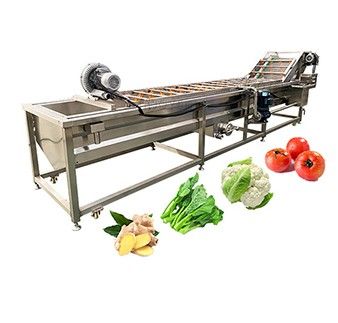

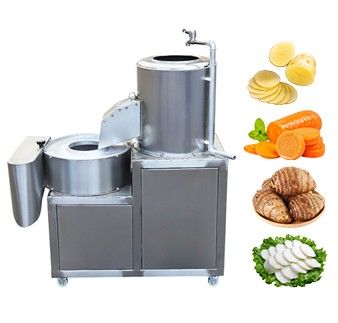

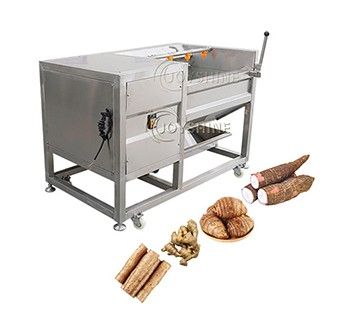

Potato washing & peeling machine: used to clean and peel the skin of potatoes in energy-conserving and high efficient way.

Potato cutting machine: cutting the potatoes into strips and bar shapethe thickness can be adjusted according to your preference.

French fries blanching machine: this is used for blanching french fries and making them look more attractive keeping fresh.

De-watering machine: with centrifugal for saving the time of frying and make the french fries more delicious.

French fries Frying machineadopt water & oil mixture frying machine after the operation is finished. You just need to release the water at the same time the residue will flow outside together with the water greatly increasing the oils using recycle.

De-oiling machine: reduce the oil content of french fries and make preparation for flavoring process.

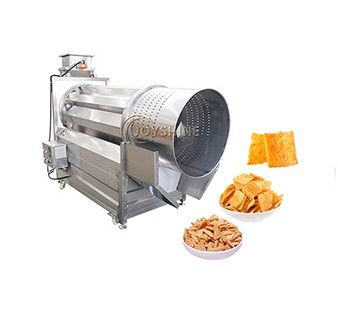

Flavoring machine: adopt spray method, seasoning the french fries evenly. and the french fries are not easy to break.

French fries packing machineinflate the nitrogen into bags white packaging french fries. It could finish inflation, packaging and printing one time.

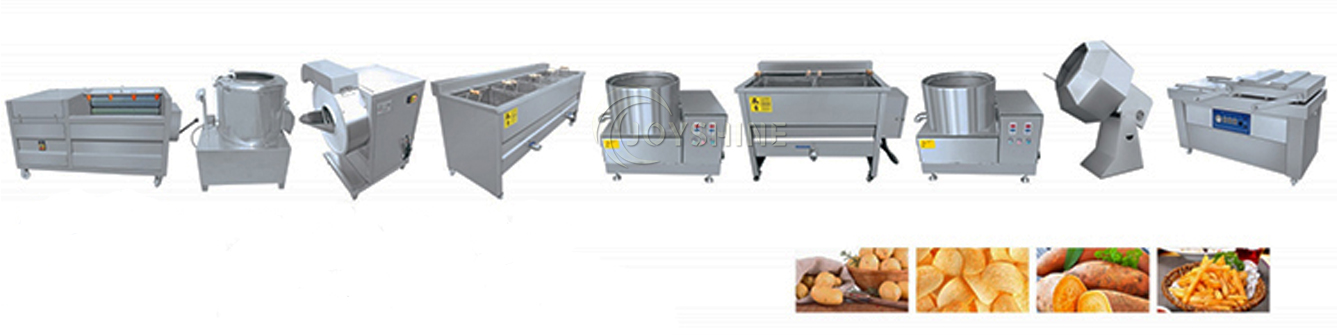

the process details of semi-automatioc chips&french freis line

Advantage

  • 1. Its capacity is about 30-500kg/h. Meanwhile, we can accept customized service.
  • 2. Heating method: electric or gas heating you can choose.
  • 3. It is easy, safe and hygienic to operate.
  • 4. The materials are from excellent stainless steel.
  • 5. Final products: potato chips, french fries and banana chips.

Parameters

Device machine

Power(kw)

Dimensions(mm)

Cleaning machine

1.5

700*630*950

Potato chip fries machine

1.1

900*850*1000

Mesh belt blanching machine

24

1000*500*1000

Dehydrator

1.5

1000*600*740

fryer

36

1200*1000*1200

deoiler

1.5

1150*600*740

Seasoning machine

1.1

1150*800*1300

Packing machine

1.5

800*500*1000

Application

1. People can use it in many places, such as small process enterprise, food factory, etc.
2. It is can be used for all kinds of root vegetables and fruits, potato, carrot, apple, banana etc.

Video
