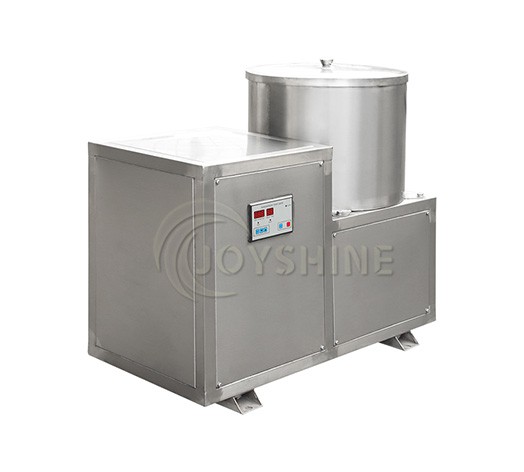

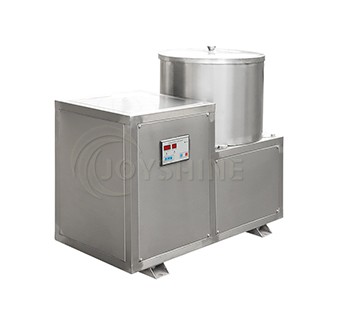

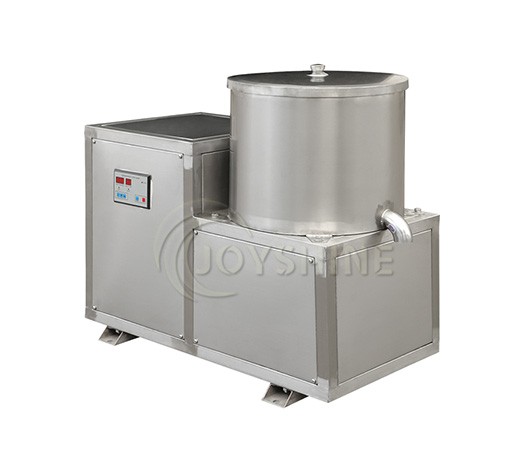

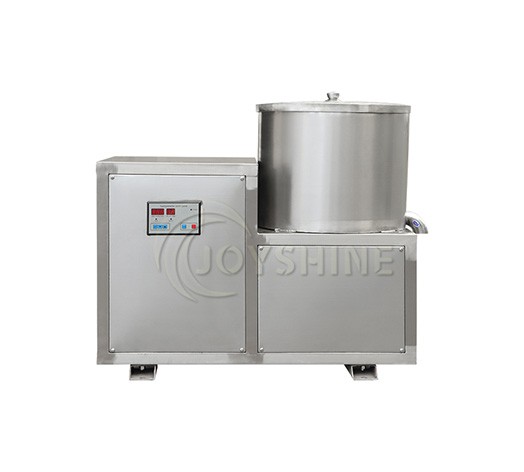

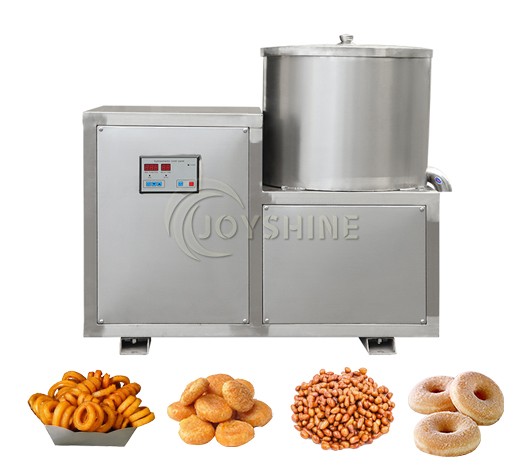

Deoiling And Dewatering Machine

Description:

This oil and water removing spinner is suitable fr removing surface water of material after washing. It is also suitable for removing surface oil of material after frying.

Product Advantage:

  • 1. Double air cylinder, it can work continuously.
  • 2. Bottom discharge type, product will be transported by a conveyor.
  • 3. Frame use 3mm SUS304 plate, cover use 2mm SUS304 plate.
  • 4. Spinning speed 700rpm.

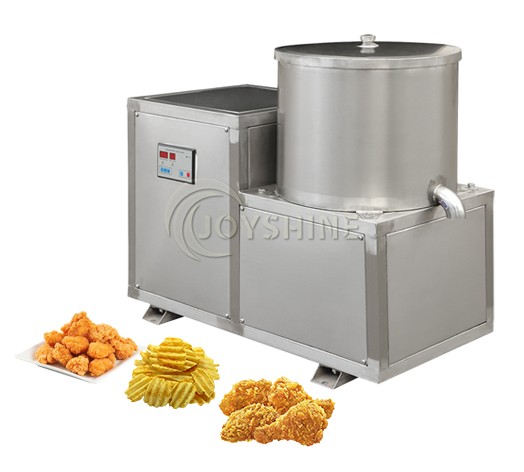

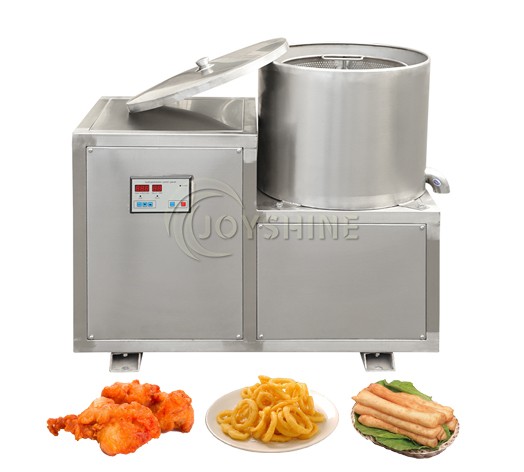

  • 5. Suitable for high oil content fried food deoiling, also suitable for dewatering.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Description

This oil and water removing spinner is suitable fr removing surface water of material after washing. It is also suitable for removing surface oil of material after frying.

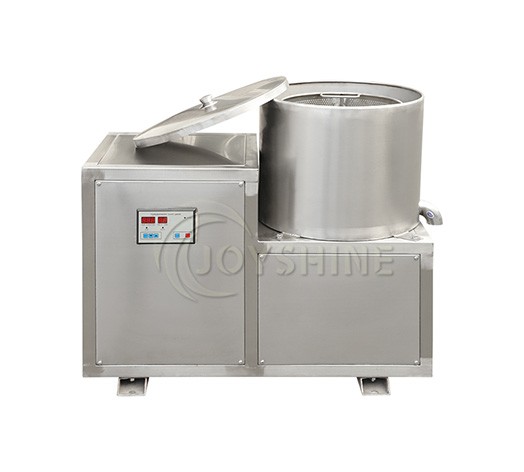

1. Lashing eyes on the bottom of this machine. It must fix with screw on the ground.
2. The rotating part and its speed is 500rpm.

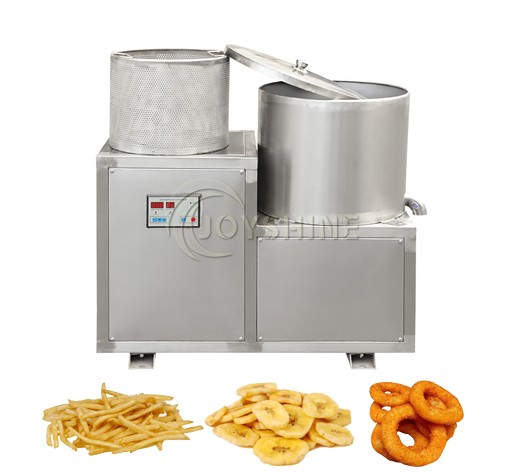

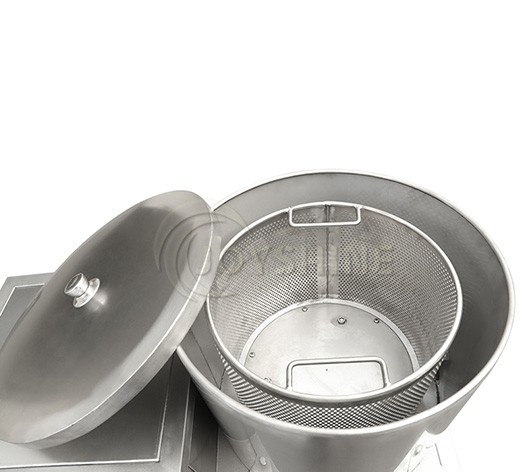

3. Spinning tank
4. Oil and water discharging port

Advantage

  • 1. Double air cylinder, it can work continuously.
  • 2. Bottom discharge type, product will be transported by a conveyor.
  • 3. Frame use 3mm SUS304 plate, cover use 2mm SUS304 plate.
  • 4. Spinning speed 700rpm.
  • 5. Suitable for high oil content fried food deoiling, also suitable for dewatering.

Parameters

Model

Drum diameter (mm)

Power(kw)

Capacity(kg/h)

Weight(kg)

Dimension(mm)

JSXCL-400

800

1.1kw

3-5 kg/batch

360

1000*500*700

JSXCL-500

1000

1.5kw

6-8 kg/batch

380

1100*600*750

JSXCL-600

800

2.2kw

8-10 kg/batch

420

1200*700*750

JSXCL-800

800

3kw

10-12 kg/batch

480

1400*900*800

JSXCL-1000

1000

3kw

15 kg/batch

490

1600*1350*1500



Application

1. it can be used in various places, such as: school, restaurant, food manufacture, hotel etc.
2. It can be used for many materials, like vegetables, fruit, ans some meat.
