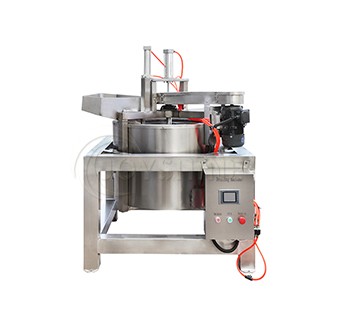

Bottom Discharge Type Deoiling And Dewatering Machine

Description:

China Professional Factory Sell Centrifugal Deoiler Machine For Frying Food adopts principle of centrifugal force, the barrel rotates in high speed, then to remove the water or oil on the products’ surface.
It is widely used for fried food and puffed food deoiling and fruit and vegetable dewatering after washing.
We have two kinds of deoiling machine:

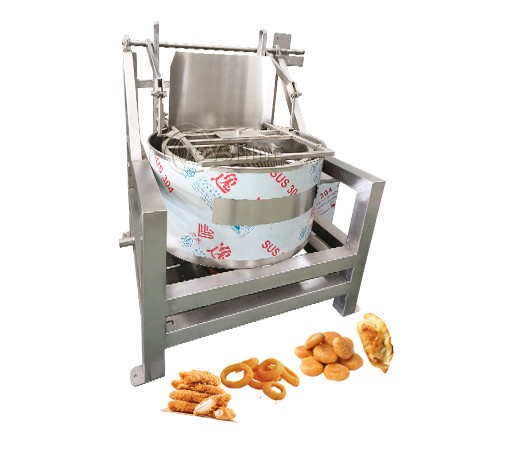

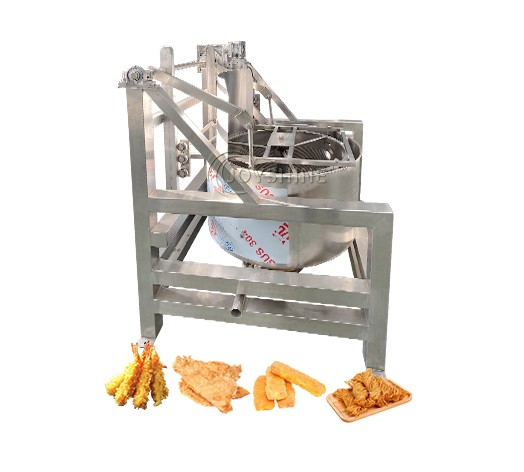

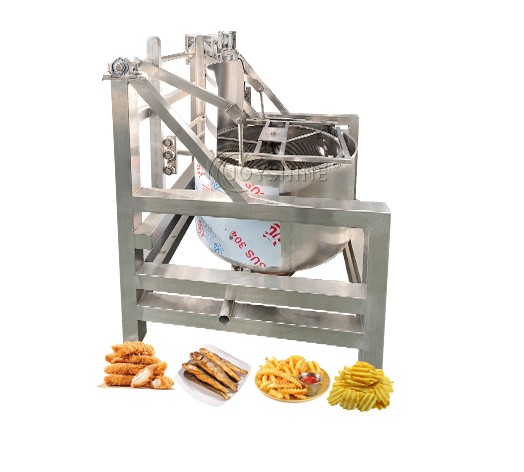

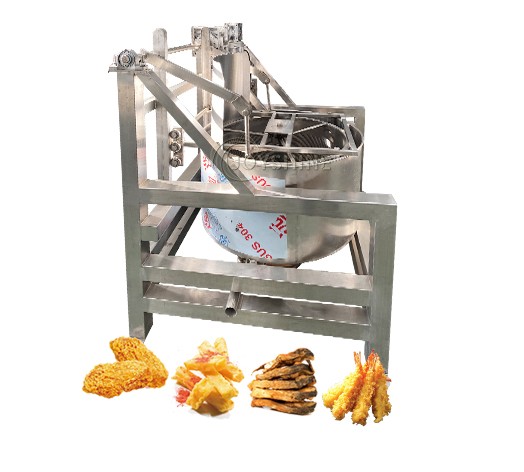

1. semi-automatic
It needs people to pick up the barrel to discharge the products after deoling.

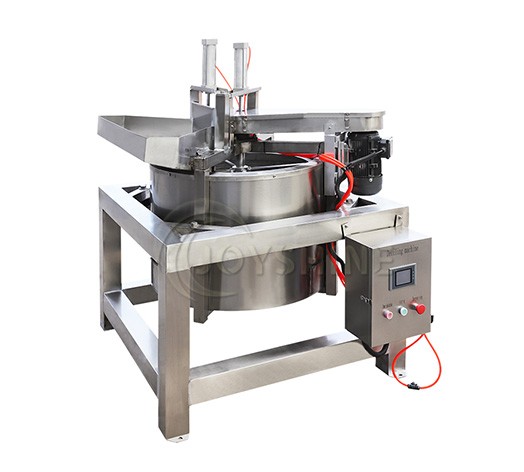

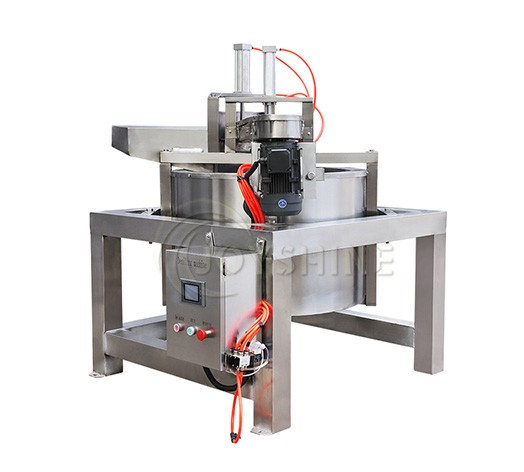

2. Fully automatic
It is automatic bottom discharging style and it can automatically discharge the products from the bottom after deoiling.

Product Advantage:

  • 1. Double air cylinder can work continuously
  • 2. Bottom discharge type, the product will be transported by a conveyor.
  • 3. Frame use Sus304 plate, cover use 2mm SUS304 plate
  • 4. Spinning speed 700rpm
  • 5. Suitable for high oil content fried food deoiling and also suitable for dewatering.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Description

1. inlet hopper
2. Spinning tank
3. Double air cylinder
4. The electromagnetic valve
5. Control box
6. Residue outlet
7. Waste oil and water outlet
8. Strong leg
Have to fix with expansion bolt on the ground

Features

1 Equipped with shake proof device, smooth operation without shaking in the process of dewatering and deoiling, safe to the operators and less damage to the machine itself
2 The working time can be set according to the raw material and satisfy different demand

Optional Configuration

If you need, we can add a VFD & control panel to adjust the speed of whirling basket

Advantage

  • 1. Double air cylinder can work continuously
  • 2. Bottom discharge type, the product will be transported by a conveyor.
  • 3. Frame use Sus304 plate, cover use 2mm SUS304 plate
  • 4. Spinning speed 700rpm
  • 5. Suitable for high oil content fried food deoiling and also suitable for dewatering.

Parameters of automatic bottom discharging type

Model

Drum diameter(mm)

Power

(kw)

Capacity

(kg/h)

Weight

(kg)

Dimension

(mm)

JSXCL-800

800

1.5

10kg/batch

370

1400*1150*1500

JSXCL-1000

1000

2.2

15kg/batch

460

1600*1350*1500



Parameters of semi automatic deoiling machine

Model

Dimension

Weight

Power

Capacity

JS-TY-400

1000*500*700mm

360kg

1.1kw

300kg/h

JS-TY-500

1100*600*750mm

450kg

1.5kw

400kg/h

JS-TY-600

1200*700*750mm

520kg

2.2kw

500kg/h

JS-TY-800

1400*900*800mm

680kg

3kw

700kg/h

Automatic Grade: Semi Automatic

it needs people to lift up the barrel to discharge the prouducts after deoiling

Automatic Grade: Fully Automatic

automatic feeding by one elevator

automatic discharging from the bottom

automatic conveying by another elevator

Capacity: Small, from 300-700kg/h

Capacity: Large, from 1000-1500kg/h

Always work with other machines in semi automatic production line

Always work with other machines in fully automatic production line

Application

1. The machine can be used in multiple places, hotel, food factory, food manufacturer, etc.
2. It is used for peeling many kinds of food, potato, carrot, apple, etc.
3. Slice and cut into strips with uniform thickness.



Video
