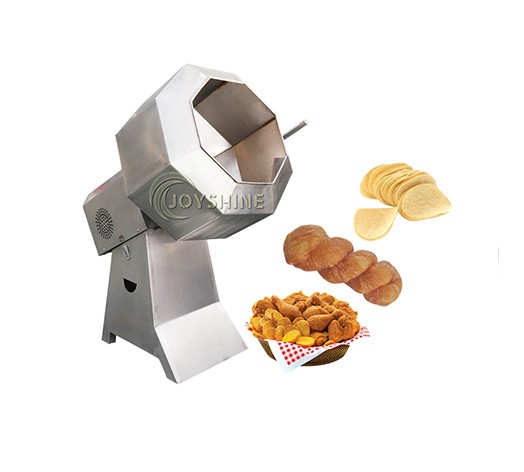

Octangular seasoning machine

Description:

1. Seasoning machine is used for snack food seasoning, feeding, mixing materials, hanging pulp and so on. It is made of stainless steel, with simple and practical structure, welding, surface brightness, can make processed food with seasoning material fully mixed uniformity in a short time.
2. Stainless steel octagonal mixing machine can be used for the Fried peanuts, Fried beans, green beans, soy bean, many kinds of peanut, peanut shrimp, crispy rice, potato chips, squid ring, onion rings, cashew nuts, pistachios, sunflower seeds and other food seasoning mixing, widely used, easy to operate, very popular in food processing plants.
3. Automatic discharging, convenient cleaning, disinfection, no dead Angle.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Description

Two kinds of seasoning machine
Octangular seasoning machine/drum seasoning machine
This drum seasoner seasoning mixer machine is widely used for snack food flavoring, seasoning powder mixing, liquid seasoning, coating, pulping and so on.
It is an essential equipment for puff food, fried food like fried peanuts, beans, potato chips, chicken feet, onion rings, squid rings, cashew nuts, pistachios, sunflower seeds and so on, to make salted, sweet or spicy flavor
Features:
1 Food grade SUS304 stainless steel
2 This seasoning machine can mix and season the food with seasoning material fully and uniformly in short time, with high output

Optional Configurations

For this batch seasoning machine, the basic style is with:
seasoning drum, on/off button and discharging rod
Then based on different products and different demands, we have following optional configurations:
1 VFD & control panel for rotating speed adjustable from 0-40r/min
2 Hopper and motor for uniformly scattering the seasoning powder
3 Oil or pulp dispensor set for uniformly spray seasoning oil or pulp
4 Pipe for blowing wind
5 Automatic discharging
6 Heating device if needed
1. Feed Inlet
Octagonal design, seasoning the food fully and evenly
2.Vibration Motor
For scattering the seasoning powder through vibration
3.Manual Discharging Rod
Pull the wrench to manually pour out the food after seasoning

Advantage

  • 1. Seasoning machine is used for snack food seasoning, feeding, mixing materials, hanging pulp and so on. It is made of stainless steel, with simple and practical structure, welding, surface brightness, can make processed food with seasoning material fully mixed uniformity in a short time.
  • 2. Stainless steel octagonal mixing machine can be used for the Fried peanuts, Fried beans, green beans, soy bean, many kinds of peanut, peanut shrimp, crispy rice, potato chips, squid ring, onion rings, cashew nuts, pistachios, sunflower seeds and other food seasoning mixing, widely used, easy to operate, very popular in food processing plants.
  • 3. Automatic discharging, convenient cleaning, disinfection, no dead Angle.

Parameters

Model

Capacity

Voltage

Power

Dimension

Weight

JSTW-700

100kg/h

220v/380v, 50Hz

1.1kw

1000*800*1300mm

50kg

JSTW-800

200kg/h

220v/380v, 50Hz

1.1kw

1000*800*1300mm

80kg

JSTW-1000

300kg/h

220v/380v, 50Hz

1.5kw

1000*800*1300mm

120kg

JSTW-1200

500kg/h

220v/380v, 50Hz

1.5kw

1000*800*1300mm

130kg

Application

Video
