Screw Cleaner

Product Advantage:

  • 1. Spiral discharge and spraying device which has the strong cleaning without damage to materials.
  • 2. It adopts 9 brush rollers, you can choose the brush roller or emery material according to the difficulty of peeling the material: the material of the brush roller is treated by special process which is durable.
  • 3. The peeling time can be adjustable.
  • 4. Equipped with water tray to prevent water from flowing to the ground.
  • 5. Equipped with wheels which is easy to move.
  • 6. Brush roller and spiral dis change are controlled individually.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Description

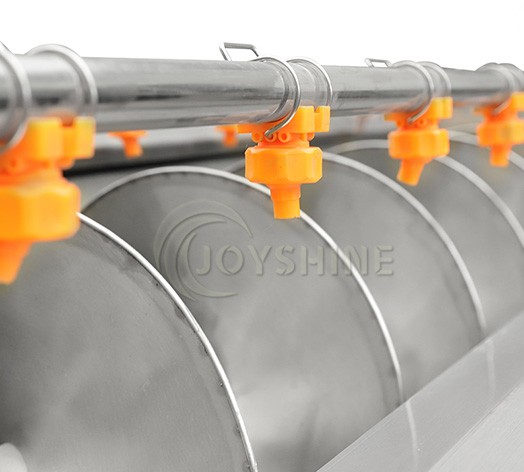

1. Screw and spray nozzles
2. Transmission parts
3. Final production discharging port and screw shaft speed adjustable motor
4. Roller brushes, it can be Nylon or Carborundum
5. Spray nozzles water pipe connecting parts
6. Waste water collecting pipe
7. Peel collecting tank with water proof panel
8. Water proof switches, it can add a control box

Advantage

  • 1. Spiral discharge and spraying device which has the strong cleaning without damage to materials.
  • 2. It adopts 9 brush rollers, you can choose the brush roller or emery material according to the difficulty of peeling the material: the material of the brush roller is treated by special process which is durable.
  • 3. The peeling time can be adjustable.
  • 4. Equipped with water tray to prevent water from flowing to the ground.
  • 5. Equipped with wheels which is easy to move.
  • 6. Brush roller and spiral dis change are controlled individually.

Parameters

Model

Roller Qty

Dimension

(mm)

Weight

(kg)

Power (kw)

Capacity

JSMG2000

9 pcs

2700*850*1300

500

3.37

1000-1500kg/h

JSMG2400

9 pcs

3200*900*1400

580

4.37

1300-1800kg/h

JSMG2600

9 pcs

3400*900*1450

630

4.37

1500-2000kg/h



Application

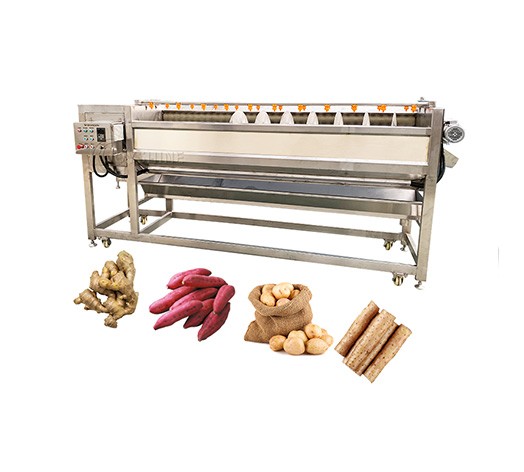

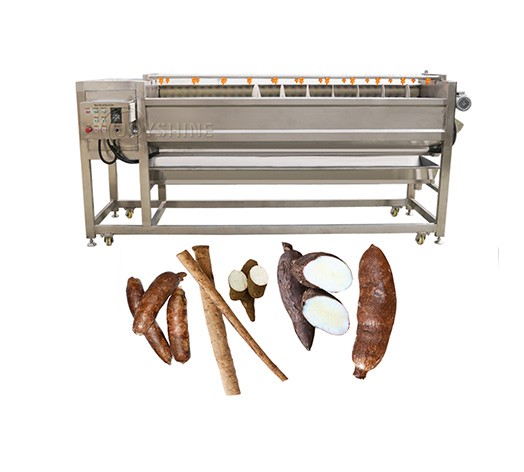

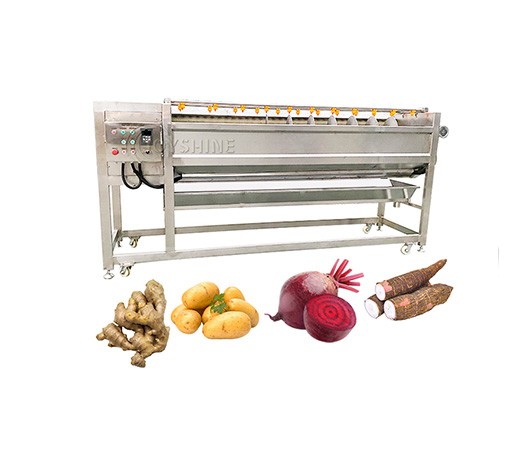

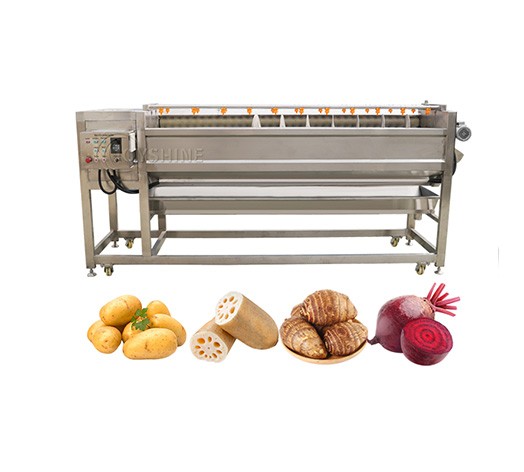

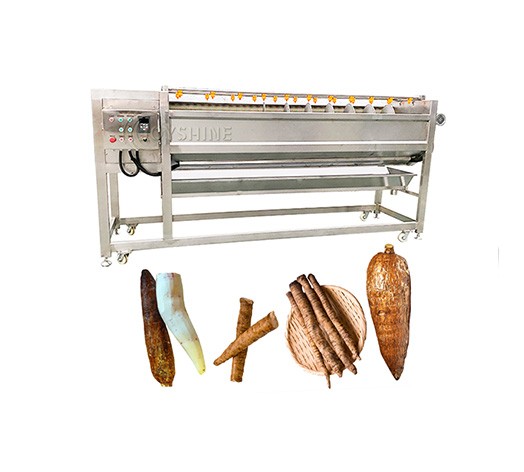

1. It is suitable for washing and peeling root vegetables such as potato, sweet potato, taro, radish, root beet, etc.
2. We can use it on the vegetable greenhouse, kitchen, hotel, food processing plant, etc.
