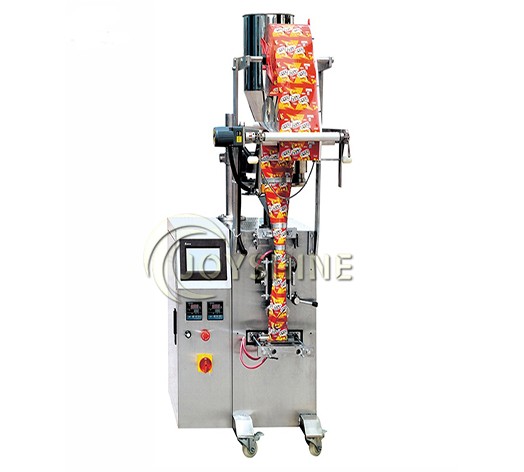

80 Granule Auto Packaging Machine

Description:

1. the unit included six part:
JX-420 larger vertical packing machine
14 heads comnination weigher
Z type material conveyer includs vibration feeder, Supporting platform and Product conveyor
2.Pillow-type bag, Standing bag, punching device, Link-bag device,bean

French Fries Packaging Machine Advantage:

  • 1. PLC control with touch panel-step by step instruction
  • 2. Equipped withservo winding system, pneumatic control system.
  • 3. The maximize to improve the whole machine precision, reliability and stability.
  • 4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
  • 5. The perfect automatic alarmsafety protection, little waste.
  • 6. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Detailed Description

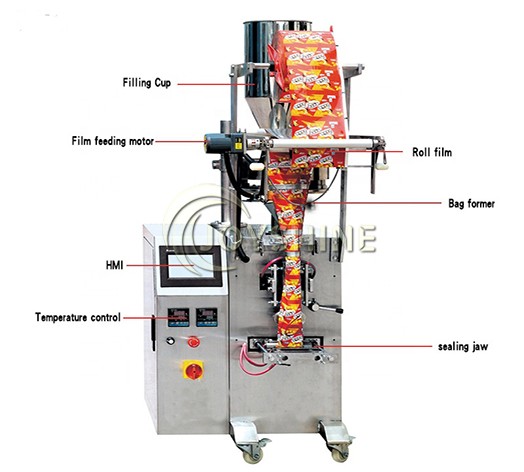

1.the unit included six part:
JX-420 larger vertical packing machine
14/10 heads comnination weigher
Z type material conveyer includs vibration feeder, Supporting platform and Product conveyor
2.Pillow-type bag, Standing bag, punching device, Link-bag device,bean

Advantage:

1. PLC control with touch panel-step by step instruction.
2. Equipped withservo winding system, pneumatic control system.
3. The maximize to improve the whole machine precision, reliability and stability.
4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
5. The perfect automatic alarmsafety protection, little waste.
6. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.

Parameters



JX-80

Item

Content

Packaging speed

20-70bags/min

Bag-making size

(W)60-140mm (L)80-160mm

filling type

cup

sealing type

pillow type bag sealing or 3 sides or 4 sides

Total power

2kw

Machine weight

350kg

Machine dimension

900*800*1800mm



Application

1. It is suitable to use in packing and high accuracy and easy fragile material, such as: puffy food, crispy rice, jelly, candy, pistachio.
2. Also suitable for automatic packaging of sugar, seeds, condiments, cereal, oatmeal, peanuts, candies, desicant detergent podwer and son on.
