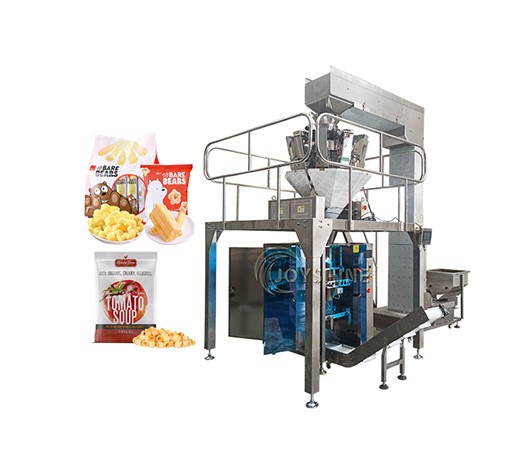

Granule Packaging Machine

Description:

1. 1.the unit included six part:

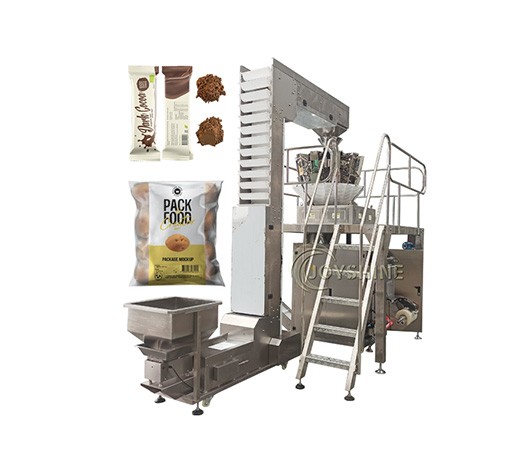

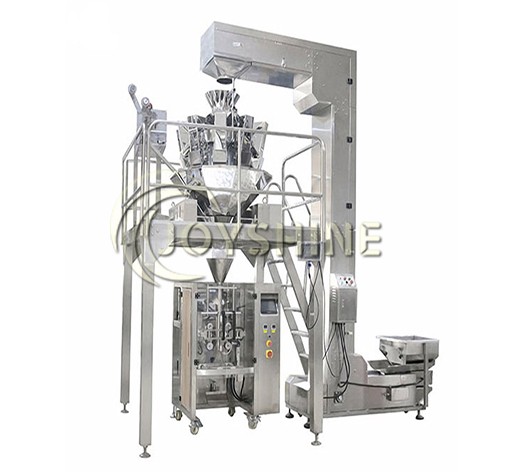

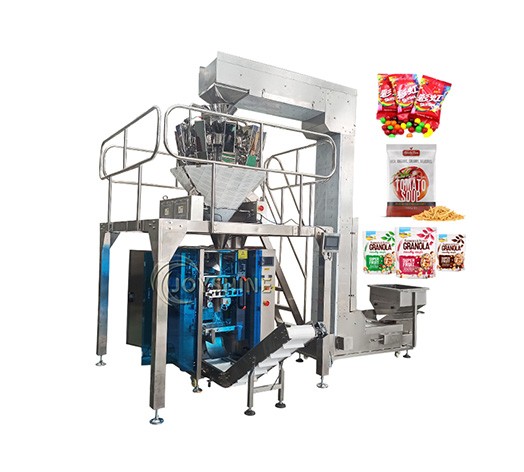

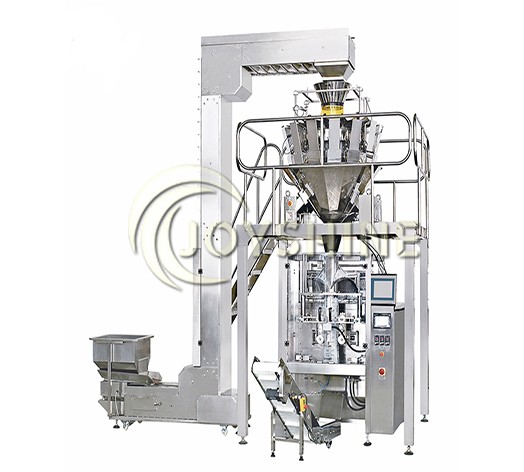

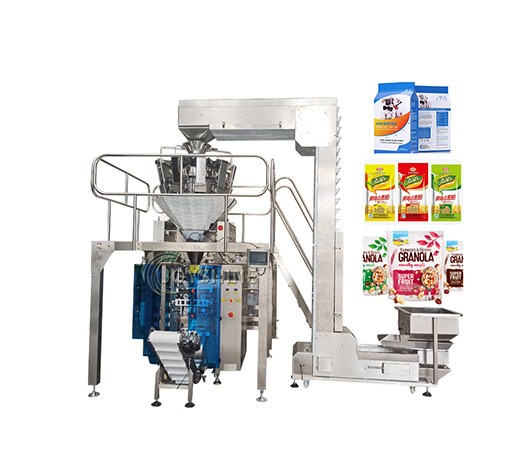

JX-420 larger vertical packing machine

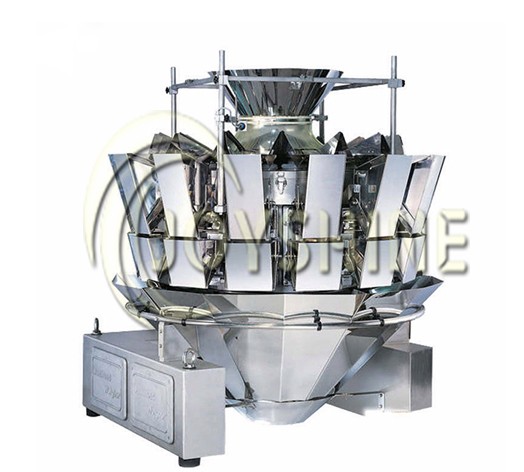

14 heads comnination weigher
Z type material conveyer includs vibration feeder, Supporting platform and Product conveyor
2.Pillow-type bag, Standing bag, punching device, Link-bag device,bean

French Fries Packaging Machine Advantage:

  • 1. PLC control with touch panel-step by step instruction
  • 2. Equipped withservo winding system, pneumatic control system.
  • 3. The maximize to improve the whole machine precision, reliability and stability.
  • 4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
  • 5. The perfect automatic alarmsafety protection, little waste.
  • 6. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Detailed Description

1.the unit included six part:
JX-420 larger vertical packing machine
14 heads comnination weigher
Z type material conveyer includs vibration feeder, Supporting platform and Product conveyor
2.Pillow-type bag, Standing bag, punching device, Link-bag device,bean

Advantage:

1. PLC control with touch panel-step by step instruction.
2. Equipped withservo winding system, pneumatic control system.
3. The maximize to improve the whole machine precision, reliability and stability.
4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
5. The perfect automatic alarmsafety protection, little waste.
6. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.

Parameters

10-14 Heads Weigher Packing Machine Technical Parameter

Model

320A

398A

420A

520A



Packing zize

W:50-150mm

W:70-200mm

W:80-200mm

W:90-250mm



L:50-200mm

L:50-300mm

L:50-300mm

L:80-350mm



Packing speed

20-60bags/min

10-60bags/min

15-80bags/min

30-80bags/min



Range of measuring

700ml

150-1500ml

150-1500ml

Max 1500ml



The max width of packing film

320mm

420mm

420mm

520mm



Air consumption

300L/min 0.6MPa

400L/min 0.6MPa

400L/min 0.6MPa

500L/min 0.6MPa



Main power/voltage

2.7kW/220V 50-60Hz

2.5kW/220V 50-60Hz

2.2kW/220V 50-60Hz

2.7kW/220V 50-60Hz



The weight of main machine

350Kg

450Kg

450Kg

450Kg



Dimension

(L)1100*(W)800*(H)1940mm

(L)1400*(W)970*(H)1700mm

(L)110*(W)800*(H)1940mm

(L)1480*(W)1200*(H)1700mm



Film thickness

0.04-0.10mm

Bag making mode

Pillow-type bag, Standing bag, punching device,Link-bag device

Film material suggestion

POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET



Application

It is suitable to use in packing and high accuracy and easy fragile material, such as: puffy food, crispy rice, jelly, candy, pistachio. Apple slices, dumpling, chocolate, pet food, small hard wares,medicine etc.
