Vacuum Packaging Machine

Description:

1. the unit included six part:
JX-420 larger vertical packing machine
14 heads comnination weigher
Z type material conveyer includs vibration feeder, Supporting platform and Product conveyor
2.Pillow-type bag, Standing bag, punching device, Link-bag device,bean

French Fries Packaging Machine Advantage:

  • 1. PLC control with touch panel-step by step instruction
  • 2. Equipped withservo winding system, pneumatic control system.
  • 3. The maximize to improve the whole machine precision, reliability and stability.
  • 4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
  • 5. The perfect automatic alarmsafety protection, little waste.
  • 6. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Detailed Description

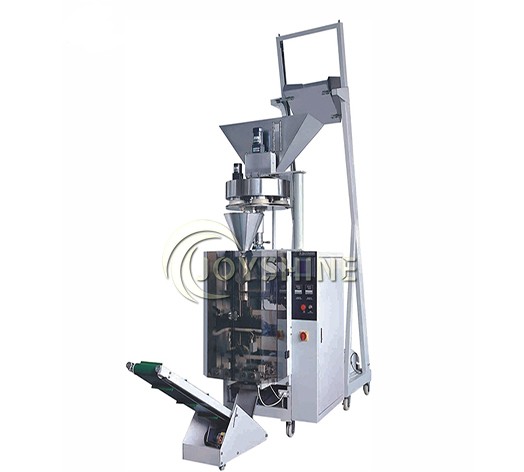

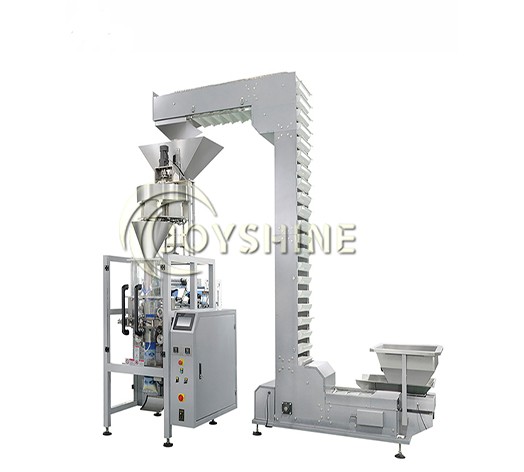

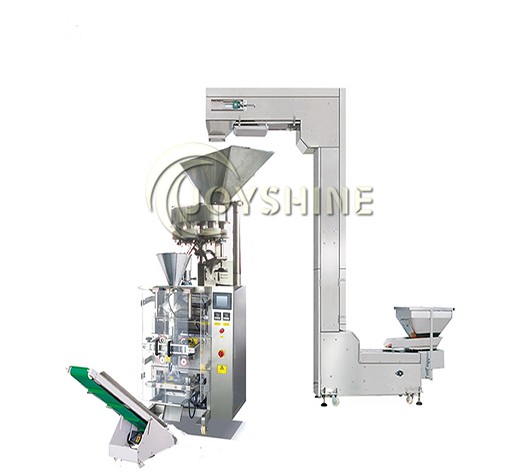

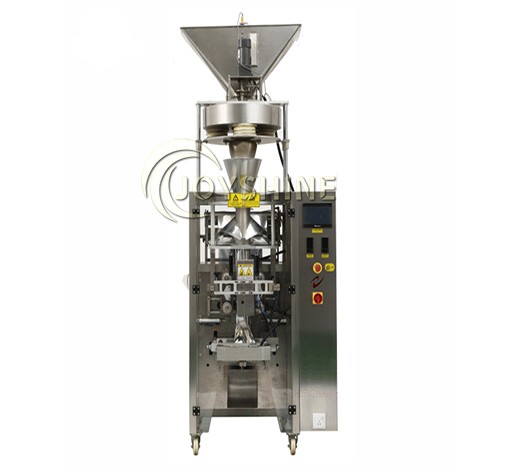

1.the unit included 4 parts:
JX-420/398 large vertical packing machine
Volumetric cup
Z type material conveyer or Big bucket conveyor
Output conveyor

Features and Advantages:

1. The machine will be automatic complete all packaging processes from feeding, measuring, filling, printing, finished bag.
2. With economic price and easy to operate.
3. The volumetric cup can be making open-close model measure equipment.
4. PLC control with touch panel-step by step instruction.
5. Equipped with servo winding system, pneumatic control system.
6. The maximize to improve the whole machine precision, reliability and stability.
7. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
8. The perfect automatic alarmsafety protection, little waste.

Parameters

Volumetric Gas Packaging Machine Technical Parameter

Model

320A

398A

420A

520A

720A

Packing zize

W:50-150mm

W:70-200mm

W:80-200mm

W:90-250mm

W:110-350mm

L:50-200mm

L:50-300mm

L:50-300mm

L:80-350mm

L:100-420mm

Packing speed

20-60bags/min

10-60bags/min

15-80bags/min

30-80bags/min

10-60bags/min

Range of measuring

700ml

150-1500ml

150-1500ml

Max 1500ml

Max 4000ml

The max width of packing film

320mm

420mm

420mm

520mm

720mm

Air consumption

300L/min 0.6MPa

400L/min 0.6MPa

400L/min 0.6MPa

500L/min 0.6MPa

800L/min 0.8MPa

Main power/voltage

2.7kW/220V 50-60Hz

2.5kW/220V 50-60Hz

2.2kW/220V 50-60Hz

2.7kW/220V 50-60Hz

4.0kW/220V 50-60Hz

The weight of main machine

350Kg

450Kg

450Kg

450Kg

800Kg

Dimension

(L)1100*(W)800*(H)1940mm

(L)1400*(W)970*(H)1700mm

(L)110*(W)800*(H)1940mm

(L)1480*(W)1200*(H)1700mm

(L)1780*(W)1350*(H)2000mm

Film thickness

0.04-0.10mm

Bag making mode

Pillow-type bag, Standing bag, punching device,Link-bag device

Film material suggestion

POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET

The standard cup parameter as following:

1. Filling cup range: 50-1500ml

2. Cup adjusted range weight:+/-15%

3. Filling speed: 10-55 times/min

4.Motor: 250w. Transducer adjusted the speed.

Application

1. It is suitable to use in packing and high accuracy and easy fragile material, such as: puffy food, crispy rice, jelly, candy, pistachio.
2. Apple slices, dumpling, chocolate, pet food, small hard wares,medicine etc.
3. Pillow-type bag, Standing bag, punching device, Link-bag device, bean.
