420w Granule Packaging Machine

Description:

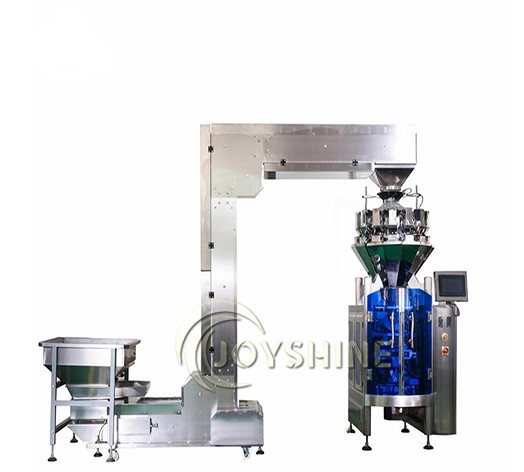

1. the unit included six part:

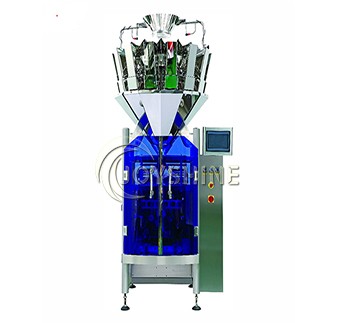

JX-420 larger vertical packing machine
14 heads comnination weigher
Z type material conveyer includs vibration feeder, Supporting platform and Product conveyor
2.Pillow-type bag, Standing bag, punching device, Link-bag device,bean

French Fries Packaging Machine Advantage:

  • 1. PLC control with touch panel-step by step instruction
  • 2. Equipped withservo winding system, pneumatic control system.
  • 3. The maximize to improve the whole machine precision, reliability and stability.
  • 4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
  • 5. The perfect automatic alarmsafety protection, little waste.
  • 6. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Detailed Description

1.the unit included six part:

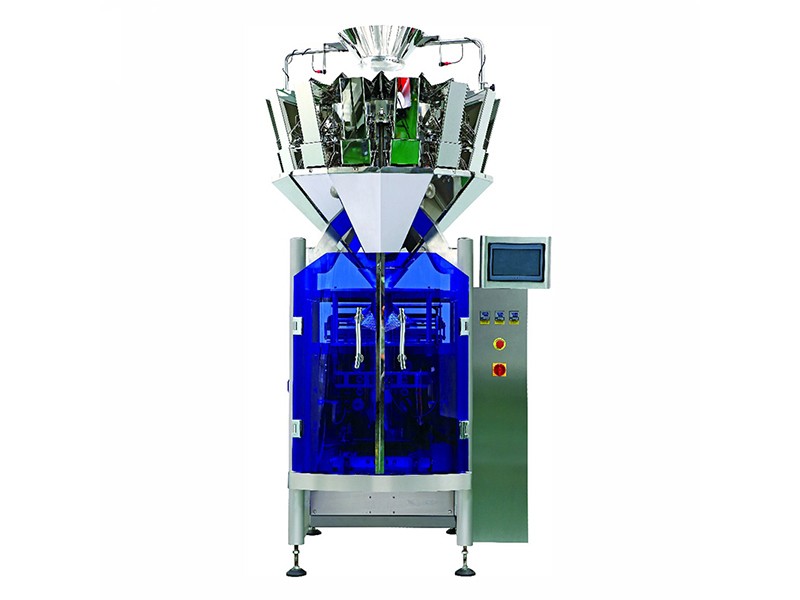

JX-420 larger vertical packing machine
14/10 heads comnination weigher
Z type material conveyer includs vibration feeder, Supporting platform and Product conveyor
2.Pillow-type bag, Standing bag, punching device, Link-bag device,bean

Advantage:

1. PLC control with touch panel-step by step instruction.
2. Equipped withservo winding system, pneumatic control system.
3. The maximize to improve the whole machine precision, reliability and stability.
4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
5. The perfect automatic alarmsafety protection, little waste.
6. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.

Parameters

Technical Parameter

Model

520W

420W

380W

320W

Packing speed

10-70bag/min

10-80 bag/min

Bag size

(W)90-250mm*(L)80-300mm

(W)80-200mm*(L)50-300mm

(W)60-180mm*(L)50-200mm

(W)60-150mm*(L)50-200mm

Range of measuring

Max 3500ml

Max 2000ml

Max 700ml

Max 700ml

The maximum width of packing film

520mm

420mm

380mm

320mm

Thickness of film

0.04-0.10 mm

0.04-0.08 mm

Air consumption

0.4 m3/min 0.6MPa

0.3 m3/min 0.6MPa

0.4 m3/min 0.6MPa

Main power/voltage

4.5kW/220V 50-60Hz

4.0kW/220V 50-60Hz

4.0kW/220V 50-60Hz

3.7kW/220V 50-60Hz

Dimension

(L)1896*(W)1182*(W)2430mm

(L)1720*(W)1030*(W)2254mm

(L)1300*(W)820*(W)2300mm

(L)1100*(W)820*(W)1940mm

The weight of switchboard

500Kg

450Kg

450Kg

350Kg

Bag making mode

Pillow-type bag,standing bag, punch hole and connet

Film material

POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET

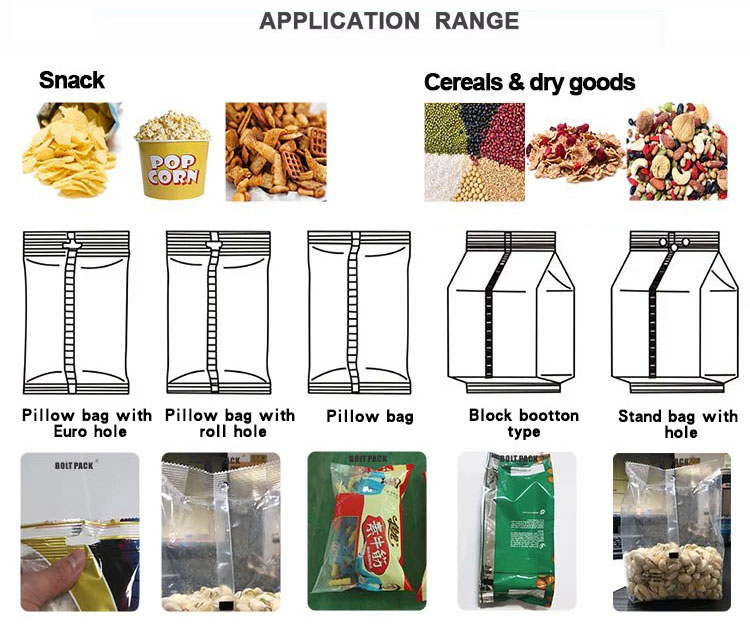

Application

1. It is suitable to use in packing and high accuracy and easy fragile material, such as: puffy food, crispy rice, jelly, candy, pistachio.
2. Apple slices, dumpling, chocolate, pet food, small hard wares,medicine etc.
2. Pillow-type bag, Standing bag, punching device, Link-bag device,bean.
