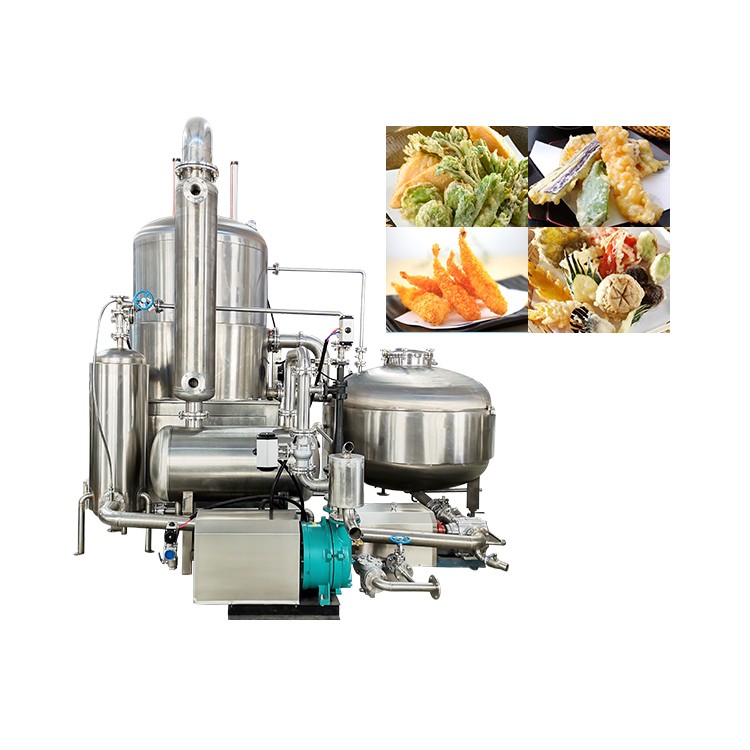

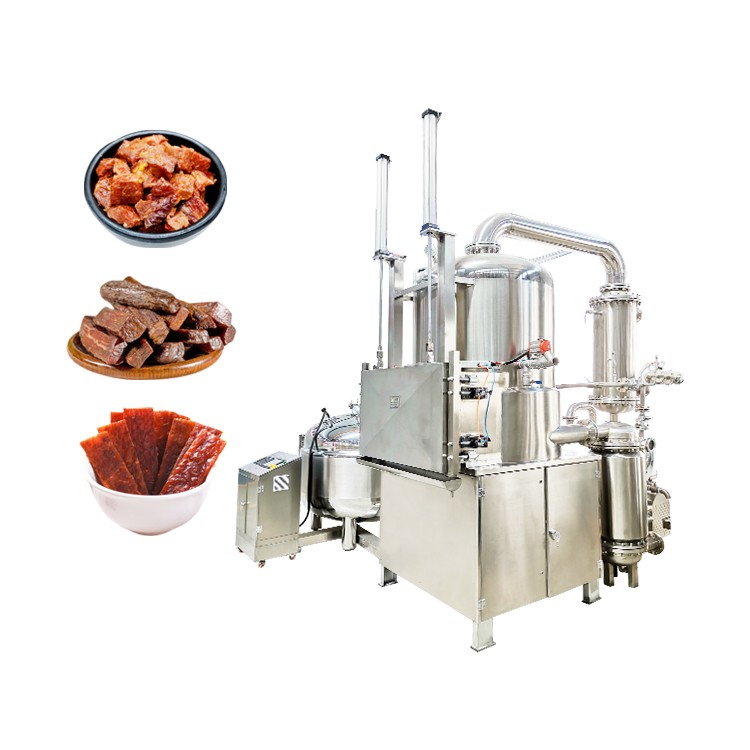

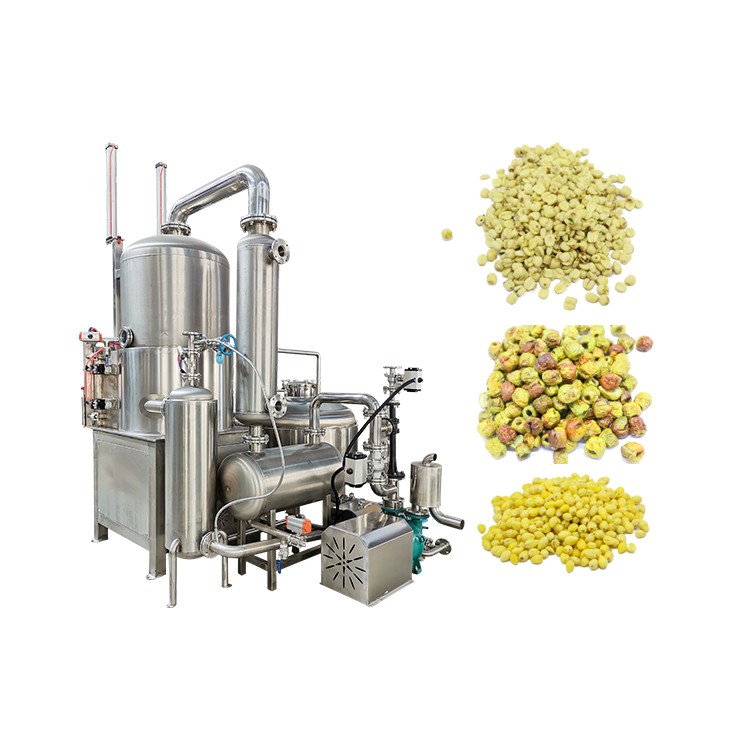

Vacuum Frying Machine For Fruit and Vegetable Chips

Description:

Because the product is processed in a vacuum tank, the dehydration of fruits and vegetables is carried out at a relatively low temperature, so the nutritional content of the food is maintained and the natural color flavor is not damaged by high temperature, so in the sense of room temperature fried food is very different, its basic principle is to use in decompression conditions, oil and the three different physical phenomena of water, (-) the boiling point of oil and water decreased (oil at about 80℃, water at about 40℃); (2) After reaching the boiling point, water is separated from liquid to gas; Oil is different; (three) the proportion of oil and water is different, and the water in the material can be replaced at the high boiling point, and the water can be made in a short time fruit, vegetables and other materials rapidly dehydrated.

Product Advantage:

  • 1.Low temperature
  • 2.Less loss of nutrients on food puffing effect
  • 3.Slow deterioration of oil
  • 4.Less oil consumption
  • 5.Fast evaporation of water
  • 6.Short drying time
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Description of vacuum frying machine

1. Vacuum low temperature dehydration of food, due to the existence of vacuum (≤ -0.099mpa), dehydration occupies a very important position, so in the significance. It is different from normal temperature frying. Vacuum low temperature dehydration was developed in the early 1970s, because the product is better than the general traditional frying process. After the 90's, the development of the technology is faster and the application scope is wider. This kind of food retains the original flavor and flavor of its ingredients well.
2. Nourishing ingredients, delicious taste, a wide range of products with high added value, so it has broad prospects for development.
3. The basic principle of vacuum low-temperature dehydration is to reduce the evaporation temperature of water in food under the condition of decompression, which can dehydrate rapidly in a short time. To achieve dehydration of food under low temperature conditions. As a heating medium for food dehydration, hot oil can also play an important role in improving food flavor. In China, fruit and vegetable crisp products are called "21st century food". Vacuum low temperature dewatering equipment vacuum pump unit is the core equipment of fruit and vegetable crisp processing, with simple operation and maintenance, reliability and high processing efficiency, energy saving and other remarkable characteristics, processing products, can meet the requirements of high quality.

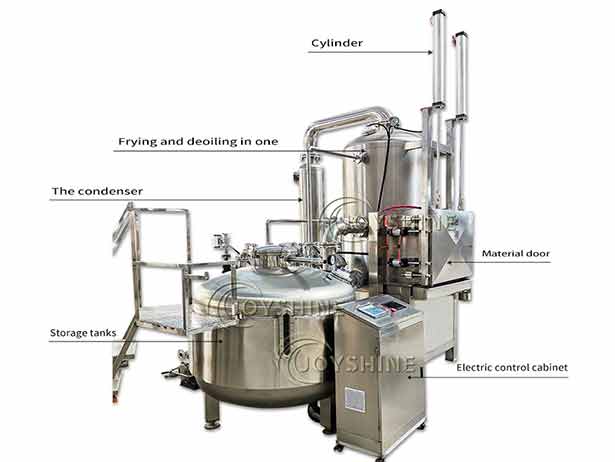

Working Principle of small scale vegetable and fruit vacuum fryer for sale

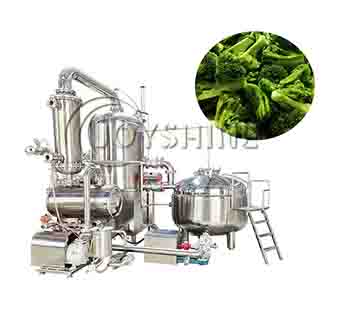

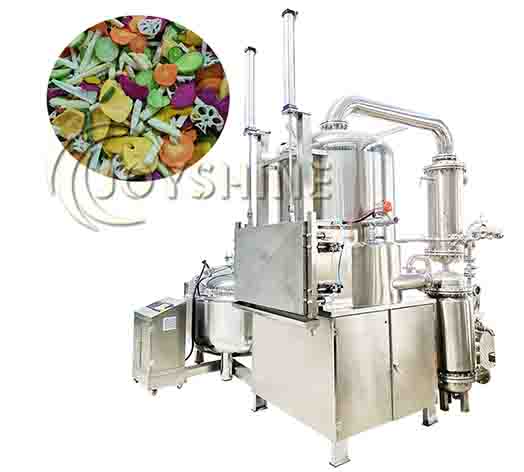

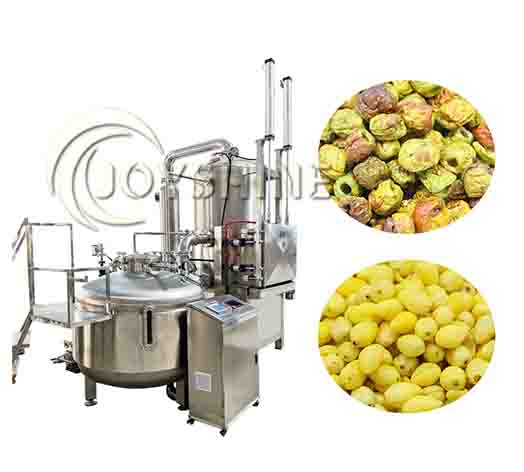

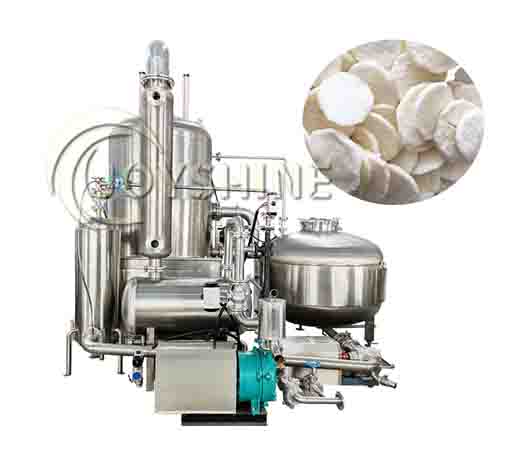

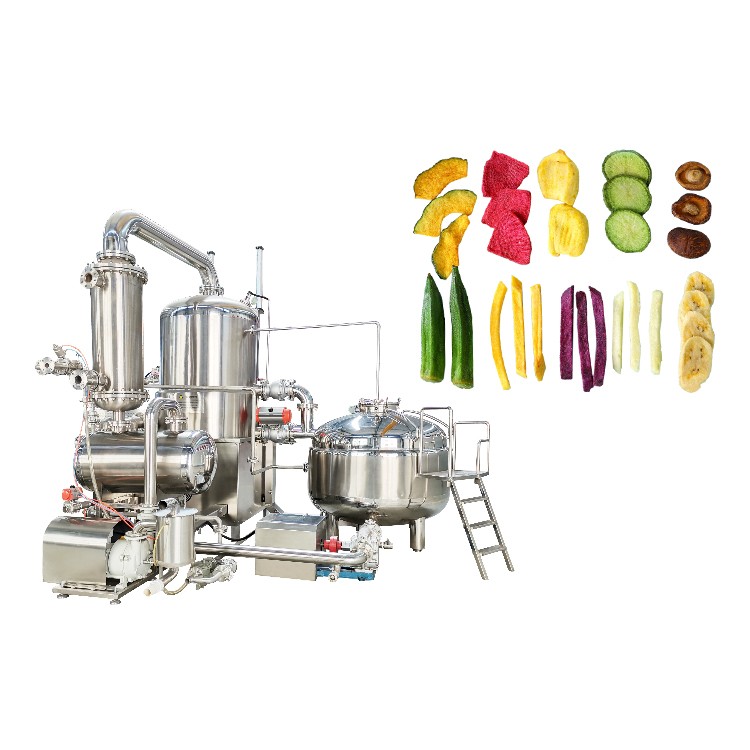

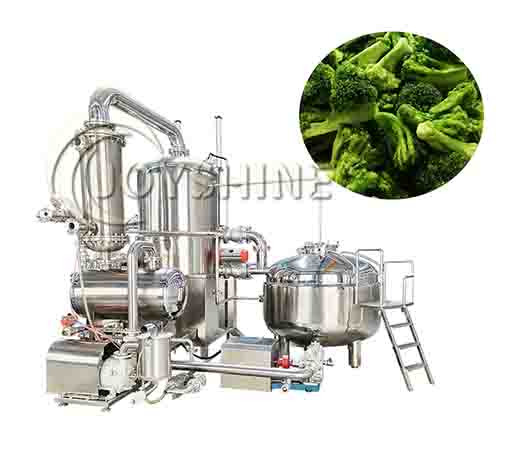

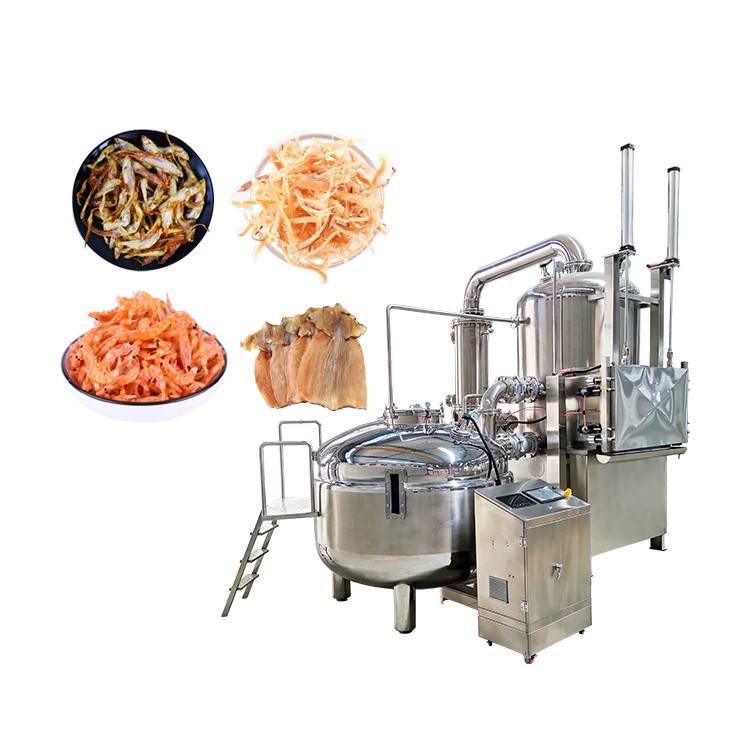

vacuum frying machine

Because the product is processed in a vacuum tank, the dehydration of fruits and vegetables is carried out at a relatively low temperature, so the nutritional content of the food is maintained and the natural color flavor is not damaged by high temperature, so in the sense of room temperature fried food is very different, its basic principle is to use in decompression conditions, oil and the three different physical phenomena of water, (-) the boiling point of oil and water decreased (oil at about 80℃, water at about 40℃); (2) After reaching the boiling point, water is separated from liquid to gas; Oil is different; (three) the proportion of oil and water is different, and the water in the material can be replaced at the high boiling point, and the water can be made in a short time fruit, vegetables and other materials rapidly dehydrated.

Work processing of vegetable and fruit crisps production line:

Vegetable and fruit peeling machine- slicing machine- bubble washing machine - blanching machine - cooler - soaking pool - elevator -vibrating screen - freezer - vacuum fryer - seasoning machine - packaging machine

Advantage of industrial vegetable and fruit chips fries vacuum fryer machine

  • 1.Low temperature
  • 2.Less loss of nutrients on food puffing effect
  • 3.Slow deterioration of oil
  • 4.Less oil consumption
  • 5.Fast evaporation of water
  • 6.Short drying time

Parameters of vacuum frying machine

Model

JX-ZKYZ80

JX-ZKYZ150

 Size

3200*3300*3850(mm)Inside diameter: Φ1000(mm)(just for inference)

4300*3850*3950(mm)Inner diameter;Φ1300(mm)(just for inference)

Weight

3.0t

4.5t

 Material

Vacuum kettle, tank, cage 304 food stainless steel(oil storage pot body with insulation layer)

Vacuum kettle, tank, cage 304 food stainless steel(oil storage pot body with insulation layer)

Power

18KW

27.5KW

Steam pressure

0.35~0.4 Mpa

0.35~0.4 Mpa

final vacuum

-0.095Mpa~-0.098Mpa

(electrical heating)

-0.095Mpa~-0.099Mpa

(no-load test)

Operating temperature

≤120℃

≤120℃

 Control system

Automatically controlled by micro computer(autoamatic/manual two gears)

automatically controlled by micro computer(autoamatic/manual two gears)

Deoiling speed

0~ 300turn/min(adjustable)

0~ 300turn/min(adjustable)

Deoiling way

build-in deoiling

build-in deoiling



Capacity

30kg/h (like potatosize: 9*9mm,tempreture≤120℃)

40kg/h(like potatosize: 1.8mm,tempreture≤110℃)

60kg/h(like potatosize: 9*9mm,tempreture≤120℃)

80kg/h(like potatosize :1.8mm,tempreture≤110℃)



Application of industrial vacuum fryer for sale

Raw material: fruit and vegetables
1. It is suitable for cutting leafy vegetable, such as: cabbage, spinach, pepper, etc.
Root vegetable: potato, taro, onion, sweet potato, eggplant, melon etc.
Fruit: apples, strawberries, jujubes, blueberry another fruit cleaning.
2. Small food processing plant, snack food factory, fruit processing plant.
3. Hotels, food &Beverage factory, farms, restaurant.

Video of vegetable and fruit vacuum frying machine

  •
  •
